ADC Programming in LPC1768- (Part 8/21)

By Prabakaran P.M

This tutorial will teach you how to use the inbuilt ADC of LPC1768 to convert an analog voltage input to a digital number and display in the LCD. Setting up the Environment for the development of ARM cortex M3 is well discussed in this article.

The LPC 1768 is ARM Cortex- M3 based Microcontrollers for embedded application features in low power consumption and a high level of integration. The ARM Cortex M3 is designed in a such way to enhance debug features and a higher level of system integration. It clocks at a CPU frequency of 100 MHz, and incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses for third bus peripherals. The ARM Cortex- M3 CPU have an internal pre-fetch unit to support speculative branching. The peripheral components include 512KB of flash memory, 64kb of data memory, Ethernet MAC, USB OTG, 4 UART’s, 8-channel general purpose DMA controller, 2 SSP Controllers, 10-bit DAC, Quadrature encoder interface, SPI interface, 3 I2C bus interface, 2 input plus 2 outputs I2S bus interface, 4 general purpose timers, ultra-low power Real-Time Clock (RTC) with separate battery supply, and up to 70 general purpose I/O pins, 6-output general purpose PWM. The LPC1768/66/65/64 are pin-compatible with the 100-pin LPC236x ARM7-based Microcontroller series.


ADC Programming in LPC1768 Prototype

Fig. 1: ADC Programming In LPC1768 Prototype

LPC1768 ADC is pretty complex peripheral. It is designed to be flexible enough to accomplish complex tasks. Lets see what ADC is capable to do. Generally speaking LPC1768 ADC have up to 8 multiplexed 12 bit Successive Approximation ADC. ADC module has a separate supply which normally can be connected to general MCU power supply. Also ADC can have external reference source through VREF+ and VREF- that can be brought through dedicated pins. In no special case analog supply voltage may be as reference internally. ADC can be performed in a single or continuous mode for single channel, scan through all channels, externally triggered conversion. There is also an analog watchdog, which can detect if voltage exceed preset threshold values. And of course DMA request based conversions.

As LPC1768 works on 3.3 volts, this will be the ADC reference voltage.
Now the resolution of ADC = 3.3/(2^12) = 3.3/4096 =0.000805 = 0.8mV

POWERING THE ADC:

PCON register bits description:

Bit

Symbol

Description

Reset value

0

–

Reserved.

NA

1

PCTIM0

Timer/Counter 0 power/clock control bit.

1

2

PCTIM1

Timer/Counter 1 power/clock control bit.

1

3

PCUART0

UART0 power/clock control bit.

1

4

PCUART1

UART1 power/clock control bit.

1

5

–

Reserved.

NA

6

PCPWM1

PWM1 power/clock control bit.

1

7

PCI2C0

The I2C0 interface power/clock control bit.

1

8

PCSPI

The SPI interface power/clock control bit.

1

9

PCRTC

The RTC power/clock control bit.

1

10

PCSSP1

The SSP 1 interface power/clock control bit.

1

11

–

Reserved.

NA

12

PCADC

A/D converter (ADC) power/clock control bit.

0

13

PCCAN1

CAN Controller 1 power/clock control bit.

0

14

PCCAN2

CAN Controller 2 power/clock control bit.

0

15

PCGPIO

Power/clock control bit for IOCON, GPIO, and GPIO interrupts.

1

16

PCRIT

Repetitive Interrupt Timer power/clock control bit.

0

17

PCMCPWM

Motor Control PWM

0

18

PCQEI

Quadrature Encoder Interface power/clock control bit.

0

19

PCI2C1

The I2C1 interface power/clock control bit.

1

20

–

Reserved.

NA

21

PCSSP0

The SSP0 interface power/clock control bit.

1

22

PCTIM2

Timer 2 power/clock control bit.

0

23

PCTIM3

Timer 3 power/clock control bit.

0

24

PCUART2

UART 2 power/clock control bit.

0

25

PCUART3

UART 3 power/clock control bit.

0

26

PCI2C2

I2C interface 2 power/clock control bit.

1

27

PCI2S

I2S interface power/clock control bit.

0

28

–

Reserved.

NA

29

PCGPDMA

GPDMA function power/clock control bit.

0

30

PCENET

Ethernet block power/clock control bit.

0

31

PCUSB

USB interface power/clock control bit.

0

Fig. 2: Bit Description Of PCON Register In LPC1768 For Powering ADC

Following reset the PCADC (Power Clock Control Bit to ADC) bit is cleared and the ADC is disabled. The first step is to set PCADC followed by PDN in ADC0CR.

Code snipet:

LPC_SC->PCONP |= (1 << 12); /* Enable CLOCK for internal ADC controller */



SELECTING CLOCK FOR ADC:

By assuming that the main clock for the LPC1768 has been programmed. Each LPC1768 peripheral including the ADC has a clock derived from the main clock as illustrated.

Peripheral Clock Divider

As shown in the below block the frequency of the peripheral clock is determined by two bits in the PCLKSEL registers. ADC is included in PCLKSEL0. With the NXP LPC1768 the peripheral clocks are always active. Following RESET PCLKSEL registers are cleared setting the peripheral clock frequency to CCLK/4 to all the peripherals. The user will have a choice of frequency which can be determined by two bits for each peripherals among the peripheral clock selection registers PCLKSEL0 and PCLKSEL1. By default at reset all values are 00 ie CCLK/4.

00

PCLK_peripheral = CCLK/4

01

PCLK_peripheral = CCLK

10

PCLK_peripheral = CCLK/2

11

PCLK_peripheral = CCLK/8, except for CAN1, CAN2,
and CAN filtering when “11” selects = CCLK/6.

Fig. 3: Bit Value Of PCLK_Peripheral For Clock Frequency


Bit

Symbol

Description

1:0

PCLK_WDT

Peripheral clock selection for WDT.

3:2

PCLK_TIMER0

Peripheral clock selection for TIMER0.

5:4

PCLK_TIMER1

Peripheral clock selection for TIMER1.

7:6

PCLK_UART0

Peripheral clock selection for UART0.

9:8

PCLK_UART1

Peripheral clock selection for UART1.

11:10

–

Reserved.

13:12

PCLK_PWM1

Peripheral clock selection for PWM1.

15:14

PCLK_I2C0

Peripheral clock selection for I2C0.

17:16

PCLK_SPI

Peripheral clock selection for SPI.

19:18

–

Reserved.

21:20

PCLK_SSP1

Peripheral clock selection for SSP1.

23:22

PCLK_DAC

Peripheral clock selection for DAC.

25:24

PCLK_ADC

Peripheral clock selection for ADC.

27:26

PCLK_CAN1

Peripheral clock selection for CAN1.[1]

29:28

PCLK_CAN2

Peripheral clock selection for CAN2.[1]

31:30

PCLK_ACF

Peripheral clock selection for CAN acceptance filtering.[1]

Fig. 4: Bit Value and description of PCLK_peripheral in LPC1768

SELECTING THE ADC FUNCTION TO GPIO:

The block diagram below shows the ADC input pins multiplexed with other GPIO pins. The ADC pin can be enabled by configuring the corresponding PINSEL register to select ADC function. When the ADC function is selected for that pin in the Pin Select register, other Digital signals are disconnected from the ADC input pins.



Adc Channel

Port Pin

Pin Functions

Associated PINSEL Register

AD0

P0.23

0-GPIO, 1-AD0[0], 2-I2SRX_CLK, 3-CAP3[0]

14,15 bits of PINSEL1

AD1

P0.24

0-GPIO, 1-AD0[1], 2-I2SRX_WS, 3-CAP3[1]

16,17 bits of PINSEL1

AD2

P0.25

0-GPIO, 1-AD0[2], 2-I2SRX_SDA, 3-TXD3

18,19 bits of PINSEL1

AD3

P0.26

0-GPIO, 1-AD0[3], 2-AOUT, 3-RXD3

20,21 bits of PINSEL1

AD4

P1.30

0-GPIO, 1-VBUS, 2- , 3-AD0[4]

28,29 bits of PINSEL3

AD5

P1.31

0-GPIO, 1-SCK1, 2- , 3-AD0[5]

30,31 bits of PINSEL3

AD6

P0.3

0-GPIO, 1-RXD0, 2-AD0[6], 3-

6,7 bits of PINSEL0

AD7

P0.2

0-GPIO, 1-TXD0, 2-AD0[7], 3-

4,5 bits of PINSEL0

Fig. 5: PINSEL register to select ADC function in LPC1768

Code snipet:

LPC_PINCON->PINSEL3|= 0x01<<30;

LPC_PINCON->PINSEL3|= 0x01<<31; /* Select the P1_31 AD0[5] for ADC function */



ADC REGISTERS:

The registers associated with LPC1768 ADC are

  • ADCR-> A/D Control Register: Used for Configuring the ADC

  • ADGDR-> A/D Global Data Register: This register contains the ADC’s DONE bit and the result of the most recent A/D conversion

  • ADINTEN- >A/D Interrupt Enable Register

  • ADDR0 – ADDR7-> A/D Channel Data Register: Contains the recent ADC value for respective channel

  • ADSTAT-> A/D Status Register: Contains DONE & OVERRUN flag for all the ADC channels



ADC REGISTER CONFIGURATION:

ADCR ( ADC Control Register )

Bit

Symbol

Description

Reset value

7:0

SEL

Selects which of the AD0.7:0 pins is (are) to be sampled and converted.

0x01

15:8

CLKDIV

The APB clock (PCLK_ADC0) is divided by (this value plus one) to produce the clock for the A/D converter.

0

16

BURST

1 The AD converter does repeated conversions at up to 200 kHz

0

20:17

–

Reserved, user software should not write ones to reserved bits.

NA

21

PDN

1 The A/D converter is operational. 0 The A/D converter is in power-down mode.

0

23:22

–

Reserved, user software should not write ones to reserved bits.

NA

26:24

START

When the BURST bit is 0, these bits control whether and when an A/D conversion is started:

000

27

EDGE

1 Start conversion on a falling edge. 0 Start conversion on a rising edge.

0

31:28

–

Reserved, user software should not write ones to reserved bits.

NA

Fig. 6: Bit Value of ADCR Control Register to configure ADC in LPC1768



Code snipet:

LPC_ADC->ADCR = ((1<<SBIT_PDN) | (10<<SBIT_CLCKDIV)); //Set the clock and Power ON ADC module

LPC_ADC->ADCR |= 0x01<<5; /* Select Channel 5 by setting 5th bit of ADCR */

ADC Global Data Register :

The ADC Global Data Register contains the status, result and the channel number of the last converesion. This register is shown for completeness below.

Bit

Symbol

Description

Reset value

3:0

–

Reserved, user software should not write ones to reserved bits. The value read from a reserved bit is not defined.

NA

15:4

RESULT

When DONE is 1, this field contains a binary fraction representing the voltage on the AD0[n] pin selected by the SEL field, as it falls within the range of VREFP to VREFN. Zero in the field indicates that the voltage on the input pin was less than, equal to, or close to that on VREFN, while 0xFFF indicates that the voltage on the input was close to, equal to, or greater than that on VREFP.

NA

23:16

–

Reserved, user software should not write ones to reserved bits. The value read from a reserved bit is not defined.

NA

26:24

CHN

These bits contain the channel from which the RESULT bits were converted (e.g. 000 identifies channel 0, 001 channel 1…).

NA

29:27

–

Reserved, user software should not write ones to reserved bits. The value read from a reserved bit is not defined.

NA

30

OVERRUN

This bit is 1 in burst mode if the results of one or more conversions was (were) lost and overwritten before the conversion that produced the result in the RESULT bits. This bit is cleared by reading this register.

0

31

DONE

This bit is set to 1 when an A/D conversion completes. It is cleared when this register is read and when the ADCR is written. If the ADCR is written while a conversion is still in progress, this bit is set and a new conversion is started.

0

Fig. 7: Bit Value and Description of ADC Global Data Register in LPC1768

Code snipet:

adc_result = (LPC_ADC->ADGDR >> SBIT_RESULT) & 0xfff; /*Read the 12bit adc result*/



Create a project using Keil uvision4 for LPC1768 Microcontroller:

In this section, we will start creating a project in Keil MDK we have already installed Keil µVision and Co-MDK Plug-in + CoLinkEx Drivers required for the CoLinkEx programming adapter. You can start by downloading the project files and kick start your practical experiment.



Code.rar

For more details on interfacing the LCD in 4 bit mode with LPC1768 refer this link.



Project Source Code

###

The codes are linked in Description ###

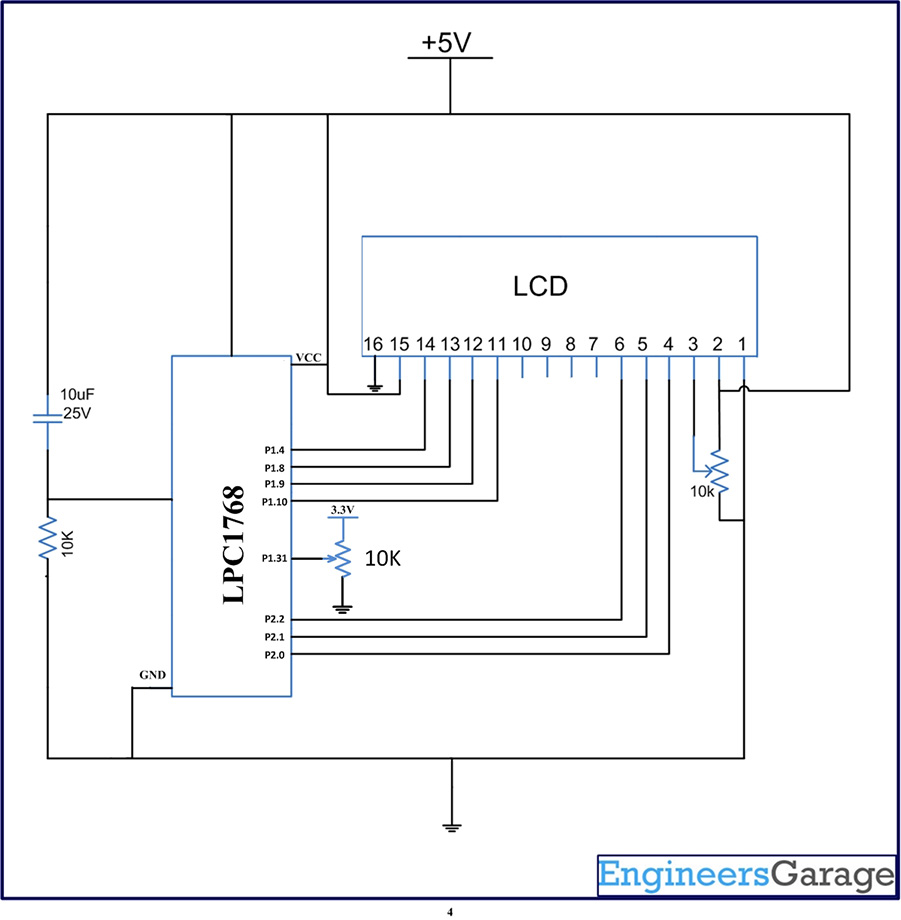

Circuit Diagrams

Circuit-Diagram-of-ADC-Programming-in-LPC1768

Project Components

  • LCD
  • LED
  • Resistor

Project Video


Filed Under: ARM



Questions related to this article?
👉Ask and discuss on EDAboard.com and Electro-Tech-Online.com forums.



Tell Us What You Think!! Cancel reply

You must be logged in to post a comment.

HAVE A QUESTION?

Have a technical question about an article or other engineering questions? Check out our engineering forums EDABoard.com and Electro-Tech-Online.com where you can get those questions asked and answered by your peers!


Featured Tutorials

  • PS2 Keyboard To Store Text In SD Card Using Arduino Circuit Setup On Breadboard
    How To Use PS2 Keyboard To Store Text In SD Card Using Arduino- (Part 42/49)
  • Wireless Path Tracking System Using Mouse, XBee And Arduino Circuit Setup On Breadboard
    How To Make A Wireless Path Tracking System Using Mouse, XBee And Arduino- (Part 43/49)
  • How to Make a Wireless Keyboard Using Xbee with Arduino- (Part 44/49)
  • Making Phone Call From GSM Module Using Arduino Circuit Setup On Breadboard
    How to Make Phonecall From GSM Module Using Arduino- (Part 45/49)
  • How to Make a Call using Keyboard, GSM Module and Arduino
    How To Make A Call Using Keyboard, GSM Module And Arduino- (Part 46/49)
  • Receiving SMS Using GSM Module With Arduino Prototype
    How to Receive SMS Using GSM Module with Arduino- (Part 47/49)

Stay Up To Date

Newsletter Signup

Sign up and receive our weekly newsletter for latest Tech articles, Electronics Projects, Tutorial series and other insightful tech content.

EE Training Center Classrooms

EE Classrooms

Recent Articles

  • Renesas delivers intelligent sensor solutions for IoT applications
  • Microchip Technology releases AVR-IoT Cellular Mini Development Board
  • Qualcomm acquires Cellwize to accelerate 5G adoption and spur infrastructure innovation
  • MediaTek’s chipset offers high-performance option for 5G smartphones
  • Nexperia’s new level translators support legacy and future mobile SIM cards

Most Popular

5G 555 timer circuit 8051 ai Arduino atmega16 automotive avr bluetooth dc motor display Electronic Part Electronic Parts Fujitsu ic infineontechnologies integratedcircuit Intel IoT ir lcd led maximintegratedproducts microchip microchiptechnology Microchip Technology microcontroller microcontrollers mosfet motor powermanagement Raspberry Pi remote renesaselectronics renesaselectronicscorporation Research samsung semiconductor sensor software STMicroelectronics switch Technology vishayintertechnology wireless

RSS EDABOARD.com Discussions

  • SRF04 module measure distance
  • Adaptive filters fundamental
  • Using LTspice to check Current sense transformer reset?
  • Thermal pad construction on pcb
  • lna+mixer noise figure problem

RSS Electro-Tech-Online.com Discussions

  • Are Cross-wind compensation and Road crown compensation functions inputs to LKA function?
  • Interfacing ZMOD4410 with Arduino UNO
  • Help diagnosing a coffee maker PCB
  • Capacitor to eliminate speaker hum
  • Identify a circuit.
Engineers Garage
  • Analog IC TIps
  • Connector Tips
  • DesignFast
  • EDABoard Forums
  • EE World Online
  • Electro-Tech-Online Forums
  • Microcontroller Tips
  • Power Electronic Tips
  • Sensor Tips
  • Test and Measurement Tips
  • 5G Technology World
  • About Us
  • Contact Us
  • Advertise

Copyright © 2022 WTWH Media LLC. All Rights Reserved. The material on this site may not be reproduced, distributed, transmitted, cached or otherwise used, except with the prior written permission of WTWH Media
Privacy Policy | Advertising | About Us

Search Engineers Garage

  • Projects and Tutorials
    • Electronic Projects
      • 8051
      • Arduino
      • ARM
      • AVR
      • PIC
      • Raspberry pi
      • STM32
    • Tutorials
    • Circuit Design
    • Project Videos
    • Components
  • Articles
    • Tech Articles
    • Insight
    • Invention Stories
    • How to
    • What Is
  • News
    • Electronic Products News
    • DIY Reviews
    • Guest Post
  • Forums
    • EDABoard.com
    • Electro-Tech-Online
    • EG Forum Archive
  • Digi-Key Store
    • Cables, Wires
    • Connectors, Interconnect
    • Discrete
    • Electromechanical
    • Embedded Computers
    • Enclosures, Hardware, Office
    • Integrated Circuits (ICs)
    • Isolators
    • LED/Optoelectronics
    • Passive
    • Power, Circuit Protection
    • Programmers
    • RF, Wireless
    • Semiconductors
    • Sensors, Transducers
    • Test Products
    • Tools
  • EE Resources
    • DesignFast
    • LEAP Awards
    • Oscilloscope Product Finder
    • White Papers
    • Webinars
  • EE Learning Center
    • Design Guides
      • WiFi & the IOT Design Guide
      • Microcontrollers Design Guide
      • State of the Art Inductors Design Guide
  • Women in Engineering
