An arduino-based chakra meditation device

Meditation is a practice that involves focusing the mind and cultivating awareness, often to achieve a state of mindfulness, mental clarity, inner peace, or spiritual connection. It’s used across cultures and traditions to reduce stress, improve emotional well-being, and enhance self-awareness — making it a valuable tool for mental and physical health.

There are several forms of meditation, each offering unique benefits, including the widely practiced chakra meditation. This practice focuses on aligning and balancing the body’s energy centers, known as chakras, to promote overall well-being.

In this project, we’ll create a device designed to enhance the experience of chakra meditation, making it an integral part of a daily yoga routine. Additionally, we’ll explore the connection between yoga and meditation, focusing specifically on chakra meditation from the Shaivite perspective of Hindu philosophy.

Components

Arduino UNO x1
MP3-TF-16P DF Player Mini module x1
TDA2030A audio amplifier x1
8Ω speaker x1
Push buttons x3
10K resistors x2
RGB LED x1

Circuit connections

To design the chakra meditation device, begin by interfacing the MP3-TF-16P module (or DFPlayer Mini), three push buttons, and an RGB LED with Arduino UNO or Mega. The speakers must also connect with the MP3 module via an audio amplifier for proper sound output.

To interface the MP3 module with Arduino, connect the GND pins of both to a common ground. Power the MP3 module by connecting its VCC pin to Arduino’s 5V pin. Then, connect the MP3 module’s RX and TX pins to Arduino’s TX and RX pins, respectively.

If you’re using Arduino Mega, connect the MP3 module’s RX and TX pins to Mega’s TX3 and RX3 pins, respectively.

To minimize noise and ensure stable communication, use 10K resistors between the MP3 module’s RX and TX pins and their corresponding pins on the Arduino. This configuration ensures a seamless interaction between the components, paving the way for a functional and effective chakra meditation aid device.

If a speaker is directly connected to the SPK_1 and SPK_2 pins of the DF Player Mini/MP3-TF-16P module, the audio output may be inaudible. To improve the sound quality and volume, try connecting the speakers to the DF Player Mini/MP3-TF-16P module via an audio power amplifier, such as the TDA2030.

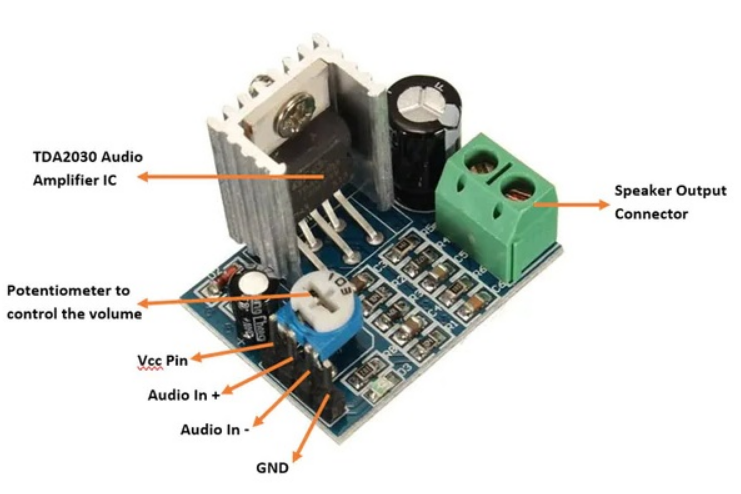

Below is the pin diagram of the TDA2030 audio power amplifier module for reference.

To integrate the audio components:

Connect the DF Player Mini/MP3-TF-16P module’s SPK_1 and SPK_2 pins to the amplifier module’s Audio In+ and Audio In—terminals.
Connect the amplifier module’s VCC and GND pins with Arduino’s 5V out and ground, respectively.
Attach a 4Ω/8Ω speaker to the speaker output terminals of the amplifier module for sound output.
Connect three push buttons to Arduino’s 2, 3, and 4 pins for additional functionality.
Interface an RGB LED by connecting its red, green, and blue terminals to Ardiono’s A0, A1, and A2 pins, and connect the LED’s ground terminal to the Arduino’s ground pin.

Refer to the circuit diagram below for a detailed connection layout.

After making the circuit connections, upload the Beej Mantra tracks using an SD card. Then, insert it into the DF Player Mini.

Here are the Beej Mantra MP3 files:

The Arduino sketch

How yoga and meditation connect

Yoga is a spiritual practice that aims to foster a deeper connection between the individual practicing it and the universe. It involves various techniques designed to align the body and mind, restore balance, and heighten spiritual awareness.

Yoga and meditation are interconnected practices, with yoga preparing the body and mind for meditation. Through physical postures, breath control, and focus, yoga creates the foundation for stillness and mental clarity, enabling a deeper meditative experience.

From a Shaivite perspective in Hindu philosophy, chakra meditation focuses on the seven energy centers within the body to achieve balance and spiritual harmony. These energy centers — or chakras — are visualized as wheels of energy aligned along the spine, each associated with specific physical and mental well-being aspects.

The chakra meditation process often involves visualization, sound, chanting, and controlled breathing to activate and harmonize these chakras. While rooted in spiritual traditions, this practice emphasizes self-awareness and inner peace, fostering a deeper connection between the body and mind. It can be a powerful tool for personal growth and balance without requiring adherence to specific religious beliefs.

Below are the seven main chakras aligned along the spine, each associated with specific aspects of life. By concentrating on each chakra through visualization and sound (mantras), it’s possible to”awaken” and harmonize these centers, enhancing their associated qualities.

1. Muladhara Chakra (Root Chakra): Located at the base of the spine, this chakra is associated with physical existence, survival instincts, stability, and a sense of security. It’s visually represented as a deep red four-petaled lotus flower, and its sound is symbolized as “Lam.”

Meditation on this chakra fosters awareness of the physical self and helps reduce fears and insecurities, promoting a grounded and stable mindset.

2. Svadhishthana (Sacral Chakra): Situated in the pelvis, this chakra relates to emotions, creativity, and desires. It’s represented as a vibrant orange six-petaled lotus flower with the sound “Vam.”

Meditating on this chakra enhances emotional awareness, allowing individuals to understand better and regulate feelings and desires. This focus opens pathways to creativity and self-expression while fostering emotional balance.

3. Manipura (Solar Plexus Chakra): Located near the navel, this chakra represents self-esteem, willpower, and determination. It’s visually depicted as a ten-petaled lotus in vibrant yellow, with the sound “Ram.”

Concentrating on this chakra strengthens inner resolve and promotes the understanding that personal thoughts and actions shape one’s life, empowering individuals to overcome obstacles and achieve goals with focus and clarity.

4. Anahata (Heart Chakra): Positioned in the chest center, this chakra embodies inner peace, compassion, and emotional harmony. It’s visualized as a twelve-petaled green lotus flower with the sound “Yam.”

Meditating on this chakra encourages universal love and acceptance, fostering a balanced and neutral mindset that embraces both joy and challenges without extremes of emotion.

5. Vishuddha (Throat Chakra): Found in the throat region, this chakra governs communication, self-expression, and higher thought processes. It’s symbolized as a sixteen-petaled lotus in light blue, with the sound “Ham.”

Focusing on this chakra enhances clarity of thought, effective communication, and intellectual curiosity. It fosters the pursuit of truth and knowledge while encouraging self-expression with integrity.

6. Ajna (Third Eye Chakra): Located at the forehead center, this chakra is associated with intuition, self-awareness, and perception. It’s represented as a two-petaled indigo lotus flower, and its sound is “Om.”

Meditation on this chakra promotes self-realization and the ability to perceive deeper truths about existence, fostering a connection with the broader patterns of duality in the universe.

7. Sahasrara (Crown Chakra): Situated at the top of the head, this chakra signifies consciousness and unity. It’s represented as a thousand-petaled lotus flower in violet or white, associated with silence or stillness.

Meditating on this chakra allows individuals to transcend perceived dualities, fostering a sense of interconnectedness and timelessness and encouraging self-awareness beyond the physical realm.

In summary, chakra meditation focuses on aligning the body’s seven energy centers to promote more self-awareness, relaxation, and emotional and physical balance. By using sound (mantras) and controlled breathing, it’s possible to attain a greater sense of well-being.

How it works

The chakra meditation device plays the Beej mantras associated with the seven chakras, accompanied by the illumination of their corresponding colors. For example, when playing the mantra “Lam” for the Muladhara (Root) Chakra, the device emits a red light to represent its energy. Users can pause, skip, or repeat a mantra using the control buttons on the device.

The Beej mantras are stored on a MicroSD card. Upon powering the device, the Arduino plays the first mantra (“Lam”) for the Muladhara chakra and activates the RGB LED to display a red light. Users can pause or resume the mantra using the play/pause button. T

he device is set to play the mantras in sequence, progressing from the Muladhara to the Sahasrara (Crown) Chakra. However, pressing the repeat button allows the current mantra to loop until pressed again to return to the default sequence. The next button lets users skip to a specific mantra, enabling targeted meditation on any chakra.

The code

The Arduino sketch begins by assigning pins for the RGB LED and buttons. Variables are declared to manage the track number, media playback status, and repeat mode status.

Here’s a breakdown of each function in the code:

The sendDFcommand() function is defined to send serial commands to control media playback on the DF Player Mini.
The playTrack() function handles playing specific tracks or mantras, while the playNext() function progresses to the next track.
The playPause() function toggles playback, and the setRepeat() function manages single-track or continuous repeat modes.
The changeVolume() function allows volume adjustment within a range of 0 to 30, and the setColor() function sets the RGB LED to a specific color by controlling its analog output.
In the setup() function, the RGB LED pins are configured as output, while the button pins are set as input. Serial communication with the DF Player Mini is initialized, and a command to play the first track is sent to start the playback sequence.
In the setup() function, the RGB LED pins are configured as output, while the button pins are set as input. Serial communication with the DF Player Mini is initialized, and a command to play the first track is sent to start the playback sequence.
In the loop() function, the status of the three buttons is continuously monitored.
When the play/pause button is pressed, the playPause() function is called to either stop or resume the current track. If the repeat button is pressed, the setRepeat() function is triggered to toggle between repeating the current track or repeating all tracks in sequence. Similarly, pressing the next button calls the playNext() function to advance to the next track.
For each track, the RGB values corresponding to the associated chakra’s color are passed to the setColor() function, which illuminates the RGB LED with the appropriate hue, providing a synchronized visual aid for meditation.

How to use the device

Begin the meditation session with pranayama to relax your body and mind. Pranayama is a yogic practice focused on controlling and regulating one’s breath to harmonize the body and mind. Slowly inhale and exhale, ensuring that your exhalation lasts twice as long as your inhalation as comfort allows. Practice a relaxed breathing technique for five to ten minutes.

Once relaxed, start with the track for the Muladhara (Root) Chakra. Chant the mantra with the device, alternating between closing your eyes and focusing on the red light illuminated by the device as it plays the “Lam” mantra.

Each mantra plays for about five minutes, with the illumination of the chakra’s associated color. Progress through the mantras for each chakra, focusing your eyes on the corresponding light and directing your mind to the chakra’s location in your body.

If you prefer to concentrate on a specific chakra, use the “Next” button to navigate to its mantra and press the “Repeat” button to loop it. A complete meditation session, including the pranayama and five minutes of meditation on each chakra, will take approximately 40 to 45 minutes.
