Many keyboards nowadays come with multimedia control functions as well. These functions work with the default multimedia player of the operating system. Like many keyboards have multimedia functions to work with the windows media player of the windows operating system. The control functions are like playing and pausing the multimedia playback, increasing, decreasing or muting the volume, start playing the next track and stopping the playback of media file. In this project a keypad is designed to control the similar multimedia functions.
In the previous projects, the project device was configured to be a generic desktop device like a generic USB keyboard or generic USB mouse. For configuring the device to being a generic desktop peripheral, the usage page report item in the usage report was set to 0x01. The 0x01 code in the usage page report item of the usage report was configuring the usage type to generic desktop controls. With multimedia keypad project, it will be learned how to configure the project to other HID device types and enable control operations respective to other HID device types on USB. In this project, the device will not be configured to generic desktop control but to the consumer device type. In the USB protocol, when the usage page report item is configured to consumer type, the device gets configured for application specific controls.
Fig. 1: Prototype of Arduino based USB Multimedia Keyboard
The 8-bit USB AVR – Atmega 32u4 is used as the device controller chip in the project. The project uses AVR based Lightweight USB Framework (LUFA) as the firmware which is modified to work for this media control keypad.
The LUFA firmware is used to implement the USB protocol and its HID device driver class for Consumer controls is modified to program the project. With the use of LUFA firmware, the device driver code to implement USB protocol is not needed to be written explicitly. Modifying the firmware code to implement multimedia functioning will be sufficient. The multimedia keypad will have the control buttons for the following functions – :
• Play media
• Pause media
• Stop media
• Play next media file
• Play previous media file
• Increase volume
• Decrease volume
• Mute
The project uses tactile switches as the keypad buttons, Atmega 32u4 as the USB controller chip (on board Arduino Pro Micro) and USB cable to connect with the personal computer.
PRERQUISITES
This project is based on Arduino Pro Micro which has the USB AVR – Atmega 32u4 as the sitting MCU. In order to understand this project, one must have basic knowledge of the AVR microcontrollers and the embedded C programming for AVRs. WinAVR Studio is used to write, edit and compile the project code, so closely following the project shall require familiarizing with the above stated IDE as well. Though LUFA framework takes care of implementing the USB protocol and has APIs to abstract the lower level codes, understanding USB protocol is recommended to understand how actually the project is working. In fact, if anyone has already worked on some other microcontroller, it will not be much pain to understand and follow this project as the project code is more or less about getting input from the GPIO pins of AVR MCU and modifying the LUFA device driver to work as multimedia control pad accordingly.
Fig. 2: Image demonstrating multimedia functions of Arduino based USB Multimedia Keyboard
COMPONENTS REQUIRED
1. Arduino Pro Micro
2. Breadboard
3. Connecting wires
4. Push buttons
5. Micro USB cable
6. 10K resistors
SOFTWARE TOOLS REQUIRED
1. WinAVR Studio
2. AVR Dude
3. LUFA Firmware
BLOCK DIAGRAM

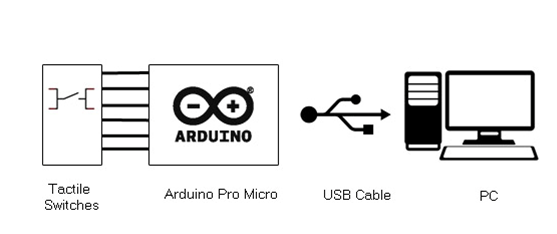

Fig. 3: Block Diagram of Arduino based USB Multimedia Keyboard
CIRCUIT CONNECTIONS

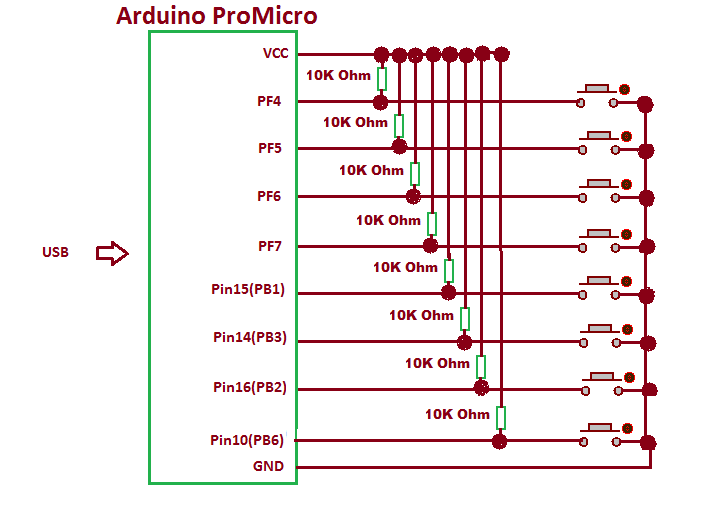

The project uses Arduino Pro Micro as the USB controller chip. A set of eight tactile switches are connected at the port B and F of the Arduino. The switches are connected at pins 1, 2, 3 and 6 of the port B and pins 4, 5, 6 and 7 of Port F with functions assigned to them according to the following table – :
Fig. 4: Table listing Arduino pins and respective keyboard functions
The tactile switches are connected between the port and ground. The pins of port B and F by default are connected to VCC and receive a HIGH logic. Pressing a tactile switch changes the status at the respective pin to LOW by short circuiting to the ground.
The Program code for the project is burnt to the Arduino Pro Micro using AVR Dude. The Arduino board is connected to the USB port of a PC by a USB cable.
HOW THE PROJECT WORKS
In this project the USB protocol is implemented by the LUFA framework. For configuring the controller chip to work as Multimedia controller, the HID Class Driver of the LUFA framework is used. The Human Interface Device (HID) class takes care of the transfers between the host device and the human controlled USB peripherals. Any device using HID class sends two reports – usage report and data report to the host device. The reports are a medium at application layer as per the USB protocol to facilitate enumeration and communication between the host and the peripheral device.
Until now, by HID devices, only keyboard, mouse or joystick was referred which are specifically generic desktop control HID devices. The USB protocol allows communication with lots of other devices and device types. These device types are referred by configuring the device to specific controls. The type of controls is set by the usage page report item of the usage report. For configuring to a specific control type, predefined byte(s) code needs to be passed to the usage page report item of the usage page. The different types of controls/device types and the respective byte(s) code that needs to be passed in the usage page report item of the usage page for its configuration are given in the table below – :

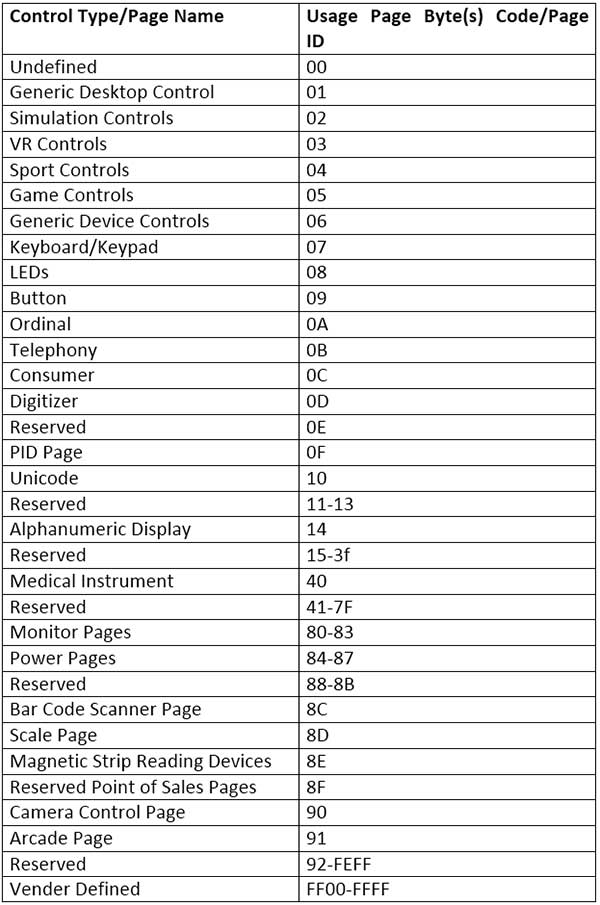

Fig. 5: Table listing media control types and respective usage page byte codes
Once the usage page report item is defined in the usage report, predefined usage report items are defined in the usage report to configure the device for specific controls corresponding to that usage page or control type.
In the LUFA framework, the usage page report item is set by the HID_RI_USAGE_PAGE() macro and usage report items have been set by the HID_RI_USAGE() macros. In both the macros, the first parameter specifies the number of bits the length of the predefined code is and second parameter is the hexadecimal code (the code defined in the USB protocol) passed to the macro.
For this project the device is configured to be a consumer device (by passing 0x0C in the HID_RI_USAGE_PAGE) like in the previous projects the custom keyboards were configured as generic desktop controls (by passing 0x01 in the HID_RI_USAGE_PAGE). By configuring to the consumer usage page type, the device is configured to application specific communication on USB. The eight controls used in the project are configured by HID_RI_USAGE() macros in the usage report of LUFA framework where following USB protocol defined codes are passed in the macros – :

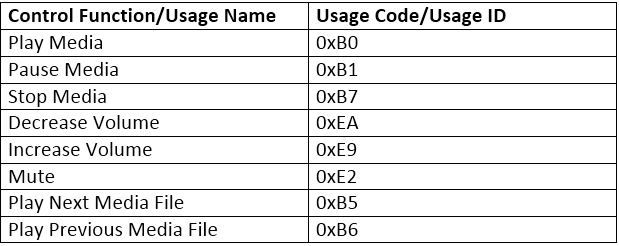

Fig. 6: Table listing media control functions and respective usage codes
Check out the HID Usage Table provided by the USB Implementers Forum to verify the correction of the codes mentioned here. Check the usage page code for consumer usage page, it is 0x0C and cross check the usage codes in the section for consumer usage page.
In the LUFA framework the HID class related modules are in the LUFA-Source-Folder/LUFA/Drivers/USB/Class/Device folder. These are the device class related modules. The application specific device drivers are in the LUFA-Source-FolderProjects folders. For implementing this project, media controller project in the LUFA projects folder will be modified and complied. The folder contains MediaController.c file which will be modified to implement the project.
How MediaController.c identifies HID device being Consumer Device
The MediaController.c uses MediaControl_HID_Interface interface in HID_Device_USBTask() function which is being imported from the HIDDeviceClass.c (from LUFA-Source-Folder LUFADriversUSBClassDevice) to configure the device as media controller. The interface abstracts the low-level descriptor codes and identifies the device as media control application by an InterfaceNumber variable.
Multimedia Specific Report Descriptors
Any HID device has to exchange data with the host which should be structured in the form of reports. The report descriptor defines the report structure. A report descriptor contains the information needed by host to determine the data format and how the data should be processed by the host. Therefore, a report descriptor basically structure the data that needs to be exchanged with the host according to the USB protocol.
As mentioned before any HID device needs to send usage report and data report descriptors specific to the device type to the host for USB communication. The Usage Report informs the Host about the features or functionality of the USB device whereas the Data (Input) Report is used to transmit the data to the Host.
Fig. 7: Image demonstrating multimedia functions of Arduino Based USB Multimedia Keyboard
From Where MediaController.C gets the USAGE and Data Reports Descriptors
In the LUFA framework, the application specific drivers are given the Projects folder. The Multimedia Controller Project is in the LUFA-Source-Folder/Projects/ MediaController folder. The MediaController.c imports MediaController.h file in which the data report for media control application is defined in the form of a structure in the following manner – :
Fig. 8: Screenshot of data report for media control application in LUFA
In MediaController.c, a MediaReport[] structure is used in the CALLBACK_HID_Device_CreateHIDReport() function to generate media control specific usage and data reports descriptors. The project imports descriptor.c file also which is given in the same folder. Inside descriptor.c the MediaReport[] structure is assigned the macros used to defined the Usage report items. Therefore the usage report for media control application is defined in the descriptor.c in the following manner – :
Fig. 9: Screenshot of CALLBACK_HID_Device_CreateHIDReport Function in LUFA Library
Check that the HID_RI_USAGE_PAGE and HID_RI_USAGE macros have been passed the codes as mentioned in the HID Usage Table.
USAGE REPORT
The Usage report used in the project has the following report items.
• USAGE_PAGE (CONSUMER) – the consumer control features
• USAGE (VOLUME_UP) – the feature for Volume Up
• USAGE (VOLUME_DOWN) – the feature for Volume Down
• USAGE (PLAY) – play feature
• USAGE (PAUSE) – pause feature
• USAGE (STOP) – stop feature
• USAGE (MUTE) – mute feature
• USAGE (NEXT_TRACK) – next track feature
• USAGE (PREVIOUS_TRACK) – previous track feature
• LOGICAL_MINIMUM (0) – logical zero will mean no key press
• LOGICAL_MAXIMUM (1) – logical one will mean key pressedThese report items are set to following values in descriptor.c file as mentioned before
Fig. 10: Screenshot of Usage report for USB Multimedia Keyboard
The Usage or Feature report contains information about the features of the device. In other words, this report informs Host about the features needed in the device. The Host can access this report by requesting the device using GET_REPORT request. This report is transmitted using Control Transfer Type of the USB protocol.
DATA (INPUT)REPORT
The Data (Input) Report contains the data that needs to be transmitted to the Host. It contains data related to the features selected via the Usage Report. In MediaController.h a structure for data report of the media control application is defined in the following manner as mentioned before – :

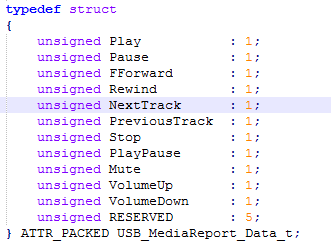

Fig. 11: Screenshot of Data Input Report for USB Multimedia Keyboard
The data report sends 11 bytes where each byte goes for setting logical maximum or logical minimum for Play, Pause, Fast Forward, Rewind, Next Track, Previous Track, Stop, Play or Pause, Mute, Volume Up and Volume Down functions. It can be seen from the Usage report also that Report Count item is set to 0x0B (decimal 11) by the HID_RI_REPORT_COUNT macro.
HOW THE DEVICE WORKS
The AVR microcontroller is programmed to receive input from the tactile switches. The main() function and the CALLBACK_HID_Device_CreateHIDReport() function of the MediaController.c are modified to detect pressing of tactile switches and send specific data report to the host on USB. Check out the program code to see the modifications done to the MediaController.c file for implementing the project.
PROGRAMMING GUIDE
For building the project download the LUFA framework from the github.com. The application project provided with the LUFA framework is modified to make this project. In the extracted LUFA zip file, open LUFA-Source-Folder/Projects/MediaController folder. The folder has the following files and folders.
Fig. 12: Screenshot of LUFA Library Folder on Windows
Of these, MediaController.h, MediaController.c and Makefile needs to be modified for this project. The modified files (provided at the bottom of the article in zip format) can also be downloaded from the engineersgarage and replaced with the original files. Either open the files in WinAVR Studio or Notepad++ and modify original files or replace files with the already modified one. The modified or replaced MediaController.c needs to be compiled from within the LUFA’s Source folder to get the object code.
Modifying MediaController.h
The MediaController.h library file is imported in the MediaController.c file and includes a set of additional libraries and the definitions for constants and functions for the media control application. These include the additional libraries for the joystick, button and LEDs which should be commented out as the project is not using these HID features. So open MediaController.h and make the following changes – :
• Comment the #include library statements for Joystick.h, LEDS.h, and Buttons.h (These libraries are commented as any joystick, buttons board and LED board is not used in the project)
Save the file with changes
Modifying MediaController.C file
Again in the MediaController.c, the code sections for Joystick, button board and LEDs need to be commented out. So open MediaController.c and make the following changes – :
• In the main loop, comment the LEDs_SetAllLEDs()
• In SetupHardware() function, comment the Joystick_Init(), LEDs_Init(), Buttons_Init()
• In EVENT_USB_Device_Connect() function, comment the LEDs_SetAllLEDs()
• In EVENT_USB_Device_Disconnect() function, comment LEDs_SetAllLEDs()
• In EVENT_USB_Device_ConfigurationChanged() function, comment the LEDs_SetAllLEDs()
In MediaController.c the main() function executes the functioning of the application. Inside the main function Port B and F where the tactile switches have been connected needs to be defined as input and all the pins of port B and F has to be raised to HIGH logic by default as the microcontroller will need to detect LOW logic for input from tactile switches. So add the following statements in the beginning of main() function -:
Inside the infinite for loop the HID_Device_USBTask() function is called where MediaControl_HID_Interface interface is passed as parameter. The interface identifies the device as Media Control Application and abstracts the low level program code specific to Consumer HID class. The function HID_Device_USBTask() is coming from the HIDClassDevice.c module (located in LUFA/Drivers/USB/Class/Device/HIDClassDevice.c) and is used for general management task for a given HID class interface, required for the correct operation of the interface. It should be called in the main program loop, before the master USB management task USB_USBTask(). The USB_USBTask() is the main USB management task. The USB driver requires this task to be executed continuously when the USB system is active (device attached in host mode, or attached to a host in device mode) in order to manage USB communications. The function USB_USBTask() is defined in USBTask.c (Located in LUFA-Source-FolderLUFADriversUSBCore folder)
For sending the required Data (Input) reports CALLBACK_HID_Device_CreateHIDReport() needs to be modified. The default file has the function body to detect joystick movement as well.
Fig. 13: Screenshot of CALLBACK_HID_Device_CreateHIDReport Function in LUFA Library
This project is using tactile switches to get hint of desired media operation. Therefore, LOW bit at each button is detected and the corresponding report item of the data report is modified accordingly. So replace the body of the function with the following code -:
In the body _BV() function is used to map the respective bit as a byte with only the respective bit changed in the returned byte.
The LOW logic is detected at the respective bit of Port B or F and specific data report item is modified to execute the media control function assigned to that pin.
Save the file and create Make file for the project.
Modifying Make File
In the MediaController folder there is a make file that needs to be edited. The file can be edited using Notepad++. The following information needs to be edited – :
• MCU = atmega32u4
• ARCH = AVR8
• BOARD = LEONARDO
• F_CPU = 16000000
Save the file and exit. Now all the files are edited completely for the media controller application.
Compiling MediaController.c
For compiling the source code, WinAVR Programmers Notepad or Arduino IDE can be used. Open the modified MediaController.c file and compile the code.
BURNING HEX CODE
The hex file is generated on compiling the MediaController.c file. For burning the object code to microcontroller open the Command Prompt, change the current directory to the directory containing the Hex file. This can be done using command: CD <address of the directory>. Now reset the Arduino and instantly run the command: : : avrdude -v -p atmega32u4 -c avr109 -P COM20 -b 57600 -D -Uflash:w:MediaController.hex:i after replacing the COM Port with the recognized one.
If the uploading process is successful, the Arduino will be shown as HID Consumer Control Device in the Device Manager. There is no need of installing any driver in the computer as Generic HID driver is used for the project implementation.
Open the windows media player on windows OS and plug in the project device. Now press buttons to check the working of media control functions.
