Digital Dice – Displaying Custom Characters on 16X2 LCD

By Praveen Kumar, Chennai, India March 23, 2017

In this project, a digital dice will be designed. The objective of this project is to teach that how custom characters can be displayed on an LCD. In Arduino projects using 16X2 LCD for display, the characters can be directly printed on one of the two rows using print() function of the LCD library of Arduino. However, sometimes displaying custom characters on the LCD is the demand of the project. The same feature has been illustrated in this project by designing a digital dice.

A digital dice is a digital version of the regular dice. Any dice has six faces on which numbers from 1 to 6 are printed. On throwing a dice, one of the face and so one of the numbers between 0 and 7 appears on the upright face. It can be any random number between 0 and 7. The digital dice will also display a random number between 0 and 7 on every trial. When the project will be powered on, the LCD display will show a custom built “0” character. The trial will be simulated by pressing a switch on which a random number between 0 and 7 will be displayed on the 16X2 LCD. For the next trial, the LCD could be reset to display custom built “0” character on pressing another switch. Whenever custom character “6” will be randomly generated on LCD, a buzzer will start sounding to indicate that the user has got an additional trial.

The project is built on Arduino UNO and has a 16X2 LCD, a buzzer and a 2-switch keypad interfaced to it. The project code has been written Arduino IDE and burnt to the Arduino board through USB using AVR Dude.

COMPONENTS REQUIRED

1. Arduino UNO – 1

2. 16×2 LCD – 1

3. Buzzer – 1

4. BC547 Transistor – 1

5. Push to ON switches – 2

6. Resistances

7. USB Cable or 7805 IC

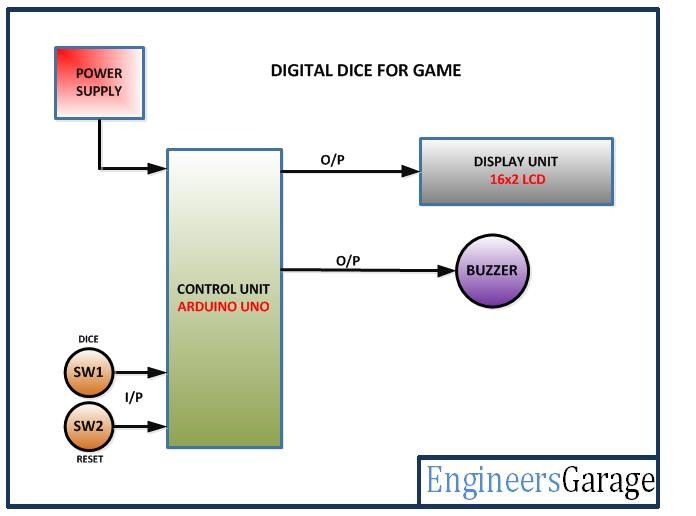

Block Diagram of Arduino based Digital Dice

Fig. 1: Block Diagram of Arduino based Digital Dice

CIRCUIT CONNECTION

In the project, LCD display is controlled by the Arduino UNO. The Arduino board runs the project code to generate a random number and display it as a custom character on the LCD display. The circuit has the following sections- :

Power Supply – The Arduino UNO can be powered directly by the USB port of the board. The other components can be powered by connecting their ground and VCC pins with the common ground and VCC pins respectively. The Arduino UNO can also be powered by a DC power supply circuit. The entire circuit requires 5V DC supply that can be generated using 7805 voltage regulator. The power can be drawn from a regular battery which can be connected to the 7805 IC. The IC has three pins – pin 1 should be connected to the anode of the battery, pin 2 and 3 with the cathode (common ground). The 5V DC should be drawn from the pin 3 of the IC. An LED along with a 10K Ω pull-up resistor can also be connected between common ground and output pin to get a visual hint of supply continuity.

16X2 LCD – The 16X2 LCD display is connected to the Arduino board by connecting its data pins to pins 3 to 6 of the Arduino board. The RS and E pins of the LCD are connected to pins 13 and 12 of the Arduino UNO respectively. The RW pin of the LCD is grounded.

Table listing circuit connections between Arduino Uno and Character LCD

Fig. 2: Table listing circuit connections between Arduino Uno and Character LCD

The standard open-source library for interfacing LCD with Arduino UNO is used in the project. The library works as expected and needs no changes or modifications.

2-Switch Keypad – There are two tactile switches interfaced at A0 and A1 pins of the Arduino UNO. The pins by default are connected to VCC through 1K Ω pull up resistors receiving a HIGH logic. The switches are connected between ground and the pins. On pressing a switch, the respective pin is short-circuited to ground getting a LOW logic input. The switches have the following functions assigned to them.

Table listing Arduino pins and respective functions in digital dice

Fig. 3: Table listing Arduino pins and respective functions in digital dice

Buzzer – A buzzer is connected at the pin 7 of Arduino UNO. The buzzer is connected through an NPN BC547 transistor circuit configured in common emitter configuration.

HOW THE PROJECT WORKS

The project is based on generating a random number between 0 and 7 and displaying the digit as a custom character on 16X2 LCD. The custom characters will be displayed using four character blocks of the LCD of which two character blocks will be on top row and other two character blocks will be in the bottom row adjacent to the blocks in top row. Each character block on 16X2 LCD is 5X8 pixels. The individual pixels of the character block can be switched ON or OFF by passing HIGH or LOW logic respective to those pixels to the LCD’s inbuilt controller. Any custom character can be displayed on a character block by switching individual pixels ON or OFF together. In this project four character blocks will be passed custom characters to form a single large-size character. The character blocks used for displaying a large custom character on LCD will be Column 0 Row 0, Column 1 Row 0, Column 0 Row 1 and Column 1 Row 1.

For displaying Zero (as default digit before dice trial), following pixel map will be assigned to the character blocks – :

Column 0 Row 0 – 0b00111,
                 0b01100,
                 0b11000,
                 0b11000,
                 0b11000,
                 0b11000,
                 0b11000,
                 0b11000
Column 1 Row 0 – 0b11100,
                0b00110,
                 0b00011,
                 0b00011,
                 0b00011,
                 0b00011,
                 0b00011,
                 0b00011
Column 0 Row 1 – 0b11000,
                           0b11000,
                          0b11000,
                          0b11000,
                          0b11000,
                          0b11000,
                          0b01100,
                          0b00111
Column 1 Row 1 – 0b00011,
                          0b00011,
                          0b00011,
                           0b00011,
                          0b00011,
                          0b00011,
                          0b00110,
                          0b11100

Similarly, different pixel maps are assigned to the character blocks for displaying large custom characters for digits – 1, 2, 3, 4, 5 and 6.

When the project is powered on, it displays custom built zero “0” on the LCD. When trial switch is pressed, a random number between 0 and 7 is generated by the program code. Corresponding to the random number generated, predefined pixel maps are assigned to the four character blocks for displaying the respective large size custom character on LCD. If that number turns out to be “6”, the buzzer is started blowing to indicate that user gets an additional trial. The user can reset the LCD display to show large size zero again by pressing the Reset button.

PROGRAMMING GUIDE

The project will utilize standard open-source library of Arduino for LCD interfacing. So include LCD.h and define an object of LCD class. A constant for delay of 300 milliseconds is defined and variables to represent buzzer, dice button and reset button are defined and assigned to Arduino pins. A global variable to represent random number is declared.

#include <LiquidCrystal.h>//import the LCD library
 LiquidCrystal lcd(13, 12, 6, 5, 4, 3);// Pins used for RS,E,D4,D5,D6,D7
 #define delayT 300
 int BUZZ=7;    //Digital pin 7 is used to ON relay 2
 int DICE=A0;
 int RESET=A1;
 int a,b,c,num;

To display zero, the pixel maps for Column 0 Row 0, Column 1 Row 0, Column 0 Row 1 and Column 1 Row 1 are defined as binary numbers in ZeroL, ZeroR, ZeroLB and ZeroRB arrays respectively.

byte zeroR[8] ={0b11100,
                0b00110,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011};
 byte zeroL[8] ={0b00111,
                0b01100,
                0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b11000};
 byte zeroLB[8] ={0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b01100,
                0b00111};
 byte zeroRB[8] ={0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00110,
                0b11100};

To display one, the pixel maps for Column 0 Row 0, Column 1 Row 0, Column 0 Row 1 and Column 1 Row 1 are defined as binary numbers in OneL, OneR, OneLB and OneRB arrays respectively.

/*1*/
 byte oneL[8] ={0b00111,
                0b01111,
                0b11011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011};
 byte oneLB[8] ={0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b11111,
                0b11111};
  byte oneRB[8] ={0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b11110,
                 0b11110};
  byte oneR[8] ={0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000};

To display two, the pixel maps for Column 0 Row 0, Column 1 Row 0, Column 0 Row 1 and Column 1 Row 1 are defined as binary numbers in TwoL, TwoR, TwoLB and TwoRB arrays respectively.

/*2*/
  byte twoL[8] ={0b00011,
                0b00111,
                0b01100,
                0b01100,
                0b01100,
                0b01100,
                0b00000,
                0b00000};
  byte twoR[8] ={0b11100,
                 0b01110,
                 0b00011,
                 0b00011,
                 0b00011,
                 0b00011,
                 0b00011,
                 0b00010};
 byte twoRB[8] ={ 0b01110,
                  0b11100,
                  0b11000,
                  0b00000,
                  0b00000,
                  0b00000,
                  0b11111,
                  0b11111};
 byte twoLB[8] ={0b00000,
                 0b00000,
                 0b00011,
                 0b00111,
                 0b01110,
                 0b11100,
                 0b11111,
                 0b11111};

To display three, the pixel maps for Column 0 Row 0, Column 1 Row 0, Column 0 Row 1 and Column 1 Row 1 are defined as binary numbers in ThreeL, ThreeR, ThreeLB and ThreeRB arrays respectively.

/*3*/

  byte threeL[8] ={0b00111,
                  0b01111,
                  0b00000,
                  0b00000,
                  0b00000,
                  0b00000,
                  0b00000,
                  0b00001};
  byte threeR[8] ={0b11100,
                   0b01110,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b11111};
 byte threeRB[8] ={0b11111,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b01110,
                   0b11100};
 byte threeLB[8] ={0b00001,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00111,
                   0b01111};

To display four, the pixel maps for Column 0 Row 0, Column 1 Row 0, Column 0 Row 1 and Column 1 Row 1 are defined as binary numbers in FourL, FourR, FourLB and FourRB arrays respectively.

/*4*/
  byte fourL[8] ={0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11111};
  byte fourR[8] ={0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b11111};
 byte fourRB[8] ={0b11111,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011};
 byte fourLB[8] ={0b11111,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000};

To display five, the pixel maps for Column 0 Row 0, Column 1 Row 0, Column 0 Row 1 and Column 1 Row 1 are defined as binary numbers in FiveL, FiveR, FiveLB and FiveRB arrays respectively.

/*5*/
  byte fiveL[8] ={0b01110,
                  0b11110,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b00111};
  byte fiveR[8] ={0b11110,
                   0b11111,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b11100};
 byte fiveRB[8] ={ 0b11110,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b11111,
                   0b11110};
 byte fiveLB[8] ={ 0b00111,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b01111,
                   0b00111};

To display six, the pixel maps for Column 0 Row 0, Column 1 Row 0, Column 0 Row 1 and Column 1 Row 1 are defined as binary numbers in FiveL, FiveR, FiveLB and FiveRB arrays respectively.

/*6*/
  byte sixL[8] ={ 0b01110,
                  0b11110,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11111};
  byte sixR[8] ={0b11100,
                   0b11110,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b11100};
 byte sixRB[8] ={ 0b11110,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b11111,
                   0b11110};
 byte sixLB[8] ={  0b11111,
                   0b11000,
                   0b11000,
                   0b11000,
                   0b11000,
                   0b11000,
                   0b01111,
                   0b00111};

A setup() function is called where the baud rate for serial transmission is set 9600 bits per second. The LCD is initialized using LCD.begin() function. The pinMode() function is used to set buzzer pin as output and button pins as digital input. Then, some initial messages are flashed on LCD screen.

void setup()  {
   Serial.begin(9600);
   lcd.begin(16,2);//LCD 16×2 initialization
   pinMode(BUZZ, OUTPUT);
   pinMode(DICE, INPUT);
   pinMode(RESET, INPUT);
   lcd.setCursor(0,0); //Initially set the cursor position of LCD to 1st Columb 1st row.
   lcd.print(“Engineers Garage”);//After initialising print data
   lcd.setCursor(0,1); //Initially set the cursor position of LCD to 1st Columb 2nd row.
   lcd.print(”               “);  //print blank to clear all the data on LCD
   delay(3000);
   lcd.setCursor(2,0);
   lcd.print(”  DIGITAL DICE  “);
    }

A loop() function is called in which first the default character 0 is displayed on the LCD. The pressing of buttons is detected by detecting LOW logic at the pins. If Dice button is pressed, a random number between 0 and 7 is generated using random() function and assigned to “num” variable. If reset button is pressed, LCD display is cleared and “num” variable is assigned value 0. If the random number is 6 then a HIGH and LOW logic is passed to the buzzer pin for a delay of 100 milliseconds.

void loop() {
  lcd.setCursor(9,1);
  lcd.print(num);
  if(digitalRead(DICE) == 0){
  num=random(0,7);
  delay(500);
   }
  if(digitalRead(RESET) == 0){
    num=0;
    lcd.setCursor(0,0);
    lcd.print(”  “);
    lcd.setCursor(0,1);
    lcd.print(”  “);
    }
  if(num==6){
    digitalWrite(BUZZ,1);
    delay(100);
    digitalWrite(BUZZ,0);
    delay(100);
  }

The value of “num” variable is checked through If-else statements and for value from 0 to 6, respective custom characters are created by assigning pixel map to character blocks using LCD.CreateChar() function. The parts of the large custom character are printed to the respective blocks by placing cursor at the respective character block and printing the character using lcd.write() function.

if(num==0)
 {
  lcd.createChar(1,zeroR);
   lcd.createChar(2,zeroL);
   lcd.createChar(3,zeroRB);
   lcd.createChar(4,zeroLB);
  lcd.setCursor(1,0);
  lcd.write(1);
  lcd.setCursor(0,0);
  lcd.write(2);
  lcd.setCursor(1,1);
  lcd.write(3);
  lcd.setCursor(0,1);
  lcd.write(4);
  }
  if(num==1)
 {
  lcd.createChar(1,oneL);
   lcd.createChar(3,oneLB);
   lcd.createChar(2,oneR);
   lcd.createChar(4,oneRB);
  lcd.setCursor(0,0);
  lcd.write(1);
   lcd.setCursor(1,0);
  lcd.write(2);
  lcd.setCursor(0,1);
  lcd.write(3);
  lcd.setCursor(1,1);
  lcd.write(4);
  }
  if(num==2)
 {
  lcd.createChar(1,twoL);
   lcd.createChar(3,twoLB);
   lcd.createChar(2,twoR);
   lcd.createChar(4,twoRB);
  lcd.setCursor(0,0);
  lcd.write(1);
  lcd.setCursor(1,0);
  lcd.write(2);
  lcd.setCursor(0,1);
  lcd.write(3);
  lcd.setCursor(1,1);
  lcd.write(4);
  }
  if(num==3){
  lcd.createChar(1,threeL);
  lcd.createChar(3,threeLB);
  lcd.createChar(2,threeR);
  lcd.createChar(4,threeRB);
  lcd.setCursor(0,0);
  lcd.write(1);
  lcd.setCursor(1,0);
  lcd.write(2);
  lcd.setCursor(0,1);
  lcd.write(3);
  lcd.setCursor(1,1);
  lcd.write(4);
  }
  if(num==4){
  lcd.createChar(1,fourL);
  lcd.createChar(3,fourLB);
  lcd.createChar(2,fourR);
  lcd.createChar(4,fourRB);
  lcd.setCursor(0,0);
  lcd.write(1);
  lcd.setCursor(1,0);
  lcd.write(2);
  lcd.setCursor(0,1);
  lcd.write(3);
  lcd.setCursor(1,1);
  lcd.write(4);}
  if(num==5){
  lcd.createChar(1,fiveL);
  lcd.createChar(3,fiveLB);
  lcd.createChar(2,fiveR);
  lcd.createChar(4,fiveRB);
  lcd.setCursor(0,0);
  lcd.write(1);
  lcd.setCursor(1,0);
  lcd.write(2);
  lcd.setCursor(0,1);
  lcd.write(3);
  lcd.setCursor(1,1);
  lcd.write(4);}
  if(num==6){
  lcd.createChar(1,sixL);
  lcd.createChar(3,sixLB);
  lcd.createChar(2,sixR);
  lcd.createChar(4,sixRB);
  lcd.setCursor(0,0);
  lcd.write(1);
  lcd.setCursor(1,0);
  lcd.write(2);
  lcd.setCursor(0,1);
  lcd.write(3);
  lcd.setCursor(1,1);
  lcd.write(4);
  }
  }

This ends the program code.

Project Source Code

###


#include <LiquidCrystal.h>//
import the LCD library

LiquidCrystal lcd(13, 12, 6, 5, 4, 3);//
Pins used for RS,E,D4,D5,D6,D7

#define delayT 300

 int BUZZ=7;    //Digital pin 7 is used to ON relay 2

 int DICE=A0;

 int RESET=A1;

 int a,b,c,num;

 byte zeroR[8] ={0b11100,
                0b00110,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011};

 byte zeroL[8] ={0b00111,
                0b01100,
                0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b11000};

 byte zeroLB[8] ={0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b11000,
                0b01100,
                0b00111};

 byte zeroRB[8] ={0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00110,
                0b11100};
                /*1*/

 byte oneL[8] ={0b00111,
                0b01111,
                0b11011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011};

 byte oneLB[8] ={0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b00011,
                0b11111,
                0b11111};

byte oneRB[8] ={0b10000,
                0b10000,
                0b10000,
                0b10000,
                0b10000,
                0b10000,
                0b11110,
                0b11110};

  byte oneR[8] ={0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000,
                 0b10000};

                 /*2*/

  byte twoL[8] ={0b00011,
                0b00111,
                0b01100,
                0b01100,
                0b01100,
                0b01100,
                0b00000,
                0b00000};

  byte twoR[8] ={0b11100,
                 0b01110,
                 0b00011,
                 0b00011,
                 0b00011,
                 0b00011,
                 0b00011,
                 0b00010};

byte twoRB[8] ={ 0b01110,
                  0b11100,
                  0b11000,
                  0b00000,
                  0b00000,
                  0b00000,
                  0b11111,
                  0b11111};

 byte twoLB[8] ={0b00000,
                 0b00000,
                 0b00011,
                 0b00111,
                 0b01110,
                 0b11100,
                 0b11111,
                 0b11111};

 /*3*/

  byte threeL[8] ={0b00111,
                  0b01111,
                  0b00000,
                  0b00000,
                  0b00000,
                  0b00000,
                  0b00000,
                  0b00001};

  byte threeR[8] ={0b11100,
                   0b01110,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b11111};

byte threeRB[8] ={0b11111,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b01110,
                   0b11100};

 byte threeLB[8] ={0b00001,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00111,
                   0b01111};

/*4*/

  byte fourL[8] ={0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11111};

  byte fourR[8] ={0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b11111};
byte fourRB[8] ={0b11111,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011};

 byte fourLB[8] ={0b11111,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000};

 /*5*/

  byte fiveL[8] ={0b01110,
                  0b11110,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b00111};

  byte fiveR[8] ={0b11110,
                   0b11111,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b11100};
byte fiveRB[8] ={ 0b11110,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b11111,
                   0b11110};

 byte fiveLB[8] ={ 0b00111,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b01111,
                   0b00111};

 /*6*/

  byte sixL[8] ={ 0b01110,
                  0b11110,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11000,
                  0b11111};

  byte sixR[8] ={0b11100,
                   0b11110,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b00000,
                   0b11100};

byte sixRB[8] ={ 0b11110,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b00011,
                   0b11111,
                   0b11110};

 byte sixLB[8] ={  0b11111,
                   0b11000,
                   0b11000,
                   0b11000,
                   0b11000,
                   0b11000,
                   0b01111,
                   0b00111};

void setup()  {

   Serial.begin(9600);

   lcd.begin(16,2);//LCD 16x2 initialization

   pinMode(BUZZ, OUTPUT);

   pinMode(DICE, INPUT);

   pinMode(RESET, INPUT);

   lcd.setCursor(0,0); //Initially
 set the cursor position of LCD to 1st Columb 1st row.

   lcd.print("Engineers Garage");//After
initialising print data

   lcd.setCursor(0,1); //Initially set
the cursor position of LCD to 1st Columb 2nd row.

   lcd.print("               ");
 //print blank to clear all the data on LCD

   delay(3000);

   lcd.setCursor(2,0);

   lcd.print("  DIGITAL DICE  ");

    }


void loop() {



  lcd.setCursor(9,1);

  lcd.print(num);

  if(digitalRead(DICE) == 0){

  num=random(0,7);

  delay(500);

   }

  if(digitalRead(RESET) == 0){

    num=0;

    lcd.setCursor(0,0);

    lcd.print("  ");

    lcd.setCursor(0,1);

    lcd.print("  ");

    }

  if(num==6){

    digitalWrite(BUZZ,1);

    delay(100);

    digitalWrite(BUZZ,0);

    delay(100);

  }

 if(num==0)

 {

  lcd.createChar(1,zeroR);

   lcd.createChar(2,zeroL);

   lcd.createChar(3,zeroRB);

   lcd.createChar(4,zeroLB);

  lcd.setCursor(1,0);

  lcd.write(1);

  lcd.setCursor(0,0);

  lcd.write(2);

  lcd.setCursor(1,1);

  lcd.write(3);

  lcd.setCursor(0,1);

  lcd.write(4);

  }

  if(num==1)

 {

  lcd.createChar(1,oneL);

   lcd.createChar(3,oneLB);

   lcd.createChar(2,oneR);

   lcd.createChar(4,oneRB);

  lcd.setCursor(0,0);

  lcd.write(1);

   lcd.setCursor(1,0);

  lcd.write(2);

  lcd.setCursor(0,1);

  lcd.write(3);

  lcd.setCursor(1,1);

  lcd.write(4);

  }

  if(num==2)

 {

  lcd.createChar(1,twoL);

   lcd.createChar(3,twoLB);

   lcd.createChar(2,twoR);

   lcd.createChar(4,twoRB);

  lcd.setCursor(0,0);

  lcd.write(1);

  lcd.setCursor(1,0);

  lcd.write(2);

  lcd.setCursor(0,1);

  lcd.write(3);

  lcd.setCursor(1,1);

  lcd.write(4);

  }

  if(num==3){

  lcd.createChar(1,threeL);

  lcd.createChar(3,threeLB);

  lcd.createChar(2,threeR);

  lcd.createChar(4,threeRB);

  lcd.setCursor(0,0);

  lcd.write(1);

  lcd.setCursor(1,0);

  lcd.write(2);

  lcd.setCursor(0,1);

  lcd.write(3);

  lcd.setCursor(1,1);

  lcd.write(4);

  }

  if(num==4){

  lcd.createChar(1,fourL);

  lcd.createChar(3,fourLB);

  lcd.createChar(2,fourR);

  lcd.createChar(4,fourRB);

  lcd.setCursor(0,0);

  lcd.write(1);

  lcd.setCursor(1,0);

  lcd.write(2);

  lcd.setCursor(0,1);

  lcd.write(3);

  lcd.setCursor(1,1);

  lcd.write(4);}

  if(num==5){

  lcd.createChar(1,fiveL);

  lcd.createChar(3,fiveLB);

  lcd.createChar(2,fiveR);

  lcd.createChar(4,fiveRB);

  lcd.setCursor(0,0);

  lcd.write(1);

  lcd.setCursor(1,0);

  lcd.write(2);

  lcd.setCursor(0,1);

  lcd.write(3);

  lcd.setCursor(1,1);

  lcd.write(4);}

  if(num==6){

  lcd.createChar(1,sixL);

  lcd.createChar(3,sixLB);

  lcd.createChar(2,sixR);

  lcd.createChar(4,sixRB);

  lcd.setCursor(0,0);

  lcd.write(1);

  lcd.setCursor(1,0);

  lcd.write(2);

  lcd.setCursor(0,1);

  lcd.write(3);

  lcd.setCursor(1,1);

  lcd.write(4);

  }



}

###




Circuit Diagrams

Circuit-Diagram-Arduino-Based-Digital-Dice

Project Video


Filed Under: Electronic Projects



Next Article

← Previous Article
Next Article →

Questions related to this article?
👉Ask and discuss on Electro-Tech-Online.com and EDAboard.com forums.



Tell Us What You Think!! Cancel reply

You must be logged in to post a comment.

EE TECH TOOLBOX

“ee
Tech Toolbox: Internet of Things
Explore practical strategies for minimizing attack surfaces, managing memory efficiently, and securing firmware. Download now to ensure your IoT implementations remain secure, efficient, and future-ready.

EE Learning Center

EE Learning Center
“engineers
EXPAND YOUR KNOWLEDGE AND STAY CONNECTED
Get the latest info on technologies, tools and strategies for EE professionals.

HAVE A QUESTION?

Have a technical question about an article or other engineering questions? Check out our engineering forums EDABoard.com and Electro-Tech-Online.com where you can get those questions asked and answered by your peers!


RSS EDABOARD.com Discussions

  • 12VAC to 12VDC 5A on 250ft 12AWG
  • Engineer's own PCB layout software guide?
  • Zeropole...
  • I think i have devised a new type of "super_transformer" for the Electricity grid?
  • Does mobility carrier ratio changes with Wn? (0.18um) inverter design

RSS Electro-Tech-Online.com Discussions

  • Lightbox circuit
  • I want to make a CRT with some modifications But i have no Idea where to start
  • Kawai KDP 80 Electronic Piano Dead
  • LT3511 Isolated Flyback Converter
  • Funny Images Thread!

Featured – Designing of Audio Amplifiers part 9 series

  • Basics of Audio Amplifier – 1/9
  • Designing 250 Milli Watt Audio Power Amplifier – 2/9
  • Designing 1 Watt Audio Power Amplifier – 3/9
  • Designing a Bass Boost Amplifier – 4/9
  • Designing a 6 Watt Car Audio Amplifier – 5/9
  • Design a low power amplifier for headphones- 6/9

Recent Articles

  • ITG Electronics releases gate drive transformers with 200 – 450 V DC capability
  • Stackpole introduces HCJ jumpers with 70.7 amp continuous current capability
  • Infineon releases MCU with 128K flash and multi-sense capabilities
  • ST introduces 600V GaN gate drivers with 300 ns start-up time
  • ABLIC releases S-19116 automotive voltage detector with 6.8ÎĽs response time

EE ENGINEERING TRAINING DAYS

engineering

Submit a Guest Post

submit a guest post
Engineers Garage
  • Analog IC TIps
  • Connector Tips
  • Battery Power Tips
  • DesignFast
  • EDABoard Forums
  • EE World Online
  • Electro-Tech-Online Forums
  • EV Engineering
  • Microcontroller Tips
  • Power Electronic Tips
  • Sensor Tips
  • Test and Measurement Tips
  • 5G Technology World
  • Subscribe to our newsletter
  • About Us
  • Contact Us
  • Advertise

Copyright © 2025 WTWH Media LLC. All Rights Reserved. The material on this site may not be reproduced, distributed, transmitted, cached or otherwise used, except with the prior written permission of WTWH Media
Privacy Policy

Search Engineers Garage

  • Electronics Projects and Tutorials
    • Electronic Projects
      • Arduino Projects
      • AVR
      • Raspberry pi
      • ESP8266
      • BeagleBone
      • 8051 Microcontroller
      • ARM
      • PIC Microcontroller
      • STM32
    • Tutorials
      • Audio Electronics
      • Battery Management
      • Brainwave
      • Electric Vehicles
      • EMI/EMC/RFI
      • Hardware Filters
      • IoT tutorials
      • Power Tutorials
      • Python
      • Sensors
      • USB
      • VHDL
    • Circuit Design
    • Project Videos
    • Components
  • Articles
    • Tech Articles
    • Insight
    • Invention Stories
    • How to
    • What Is
  • News
    • Electronic Product News
    • Business News
    • Company/Start-up News
    • DIY Reviews
    • Guest Post
  • Forums
    • EDABoard.com
    • Electro-Tech-Online
    • EG Forum Archive
  • DigiKey Store
    • Cables, Wires
    • Connectors, Interconnect
    • Discrete
    • Electromechanical
    • Embedded Computers
    • Enclosures, Hardware, Office
    • Integrated Circuits (ICs)
    • Isolators
    • LED/Optoelectronics
    • Passive
    • Power, Circuit Protection
    • Programmers
    • RF, Wireless
    • Semiconductors
    • Sensors, Transducers
    • Test Products
    • Tools
  • Learn
    • eBooks/Tech Tips
    • Design Guides
    • Learning Center
    • Tech Toolboxes
    • Webinars & Digital Events
  • Resources
    • Digital Issues
    • EE Training Days
    • LEAP Awards
    • Podcasts
    • Webinars / Digital Events
    • White Papers
    • Engineering Diversity & Inclusion
    • DesignFast
  • Guest Post Guidelines
  • Advertise
  • Subscribe
