Displaying moving(Scrolling) text on lcd using 8051(89c51,89c52) microcontroller

By EG Projects March 22, 2024

This project is about How to display moving-scrolling text/string on lcd using 8051(89c51 , 89c52) microcontroller. Moving or scrolling text on lcd is not very hard it is only the game of programming the more expert you are in programming the more you can do fun.

It is same like we display moving text on our java applications or the text that you see on news channel at the bottom moving from left to right. In this project I used a 16×2 lcd with 8051(89c51,89c52) microcontroller. 16×2 lcd is used in 8-bit mode. If you don’t know 8-bit mode than just click the link and you will have a good tutorial.
Difference between 8-bit and 4-bit lcd mode
.

​Their are two ways to Scroll-move Text on lcd

  1. Use Your Programming expertise to do so.
  2. Using Standard Commands of lcd.

Scrolling lcd display first method

First i am going to scroll text using my c++ expertise with out using standard 16×2 lcd commands. Text that I am moving on the screen is my name “Usman Ali Butt”. First i place the cursor at Row 2 Coulomb 14 and display my first alphabet ‘u’ at that place. Then i move my cursor one step back at location 13 and displays two alphabets ‘us’.  ‘u’ at 13 and ‘s’ at 14.Then again move the cursor one step back and now three characters are displayed ‘usm’. ‘u’ at 12 ‘s’ at 13 and ‘m’ at 14 location. The whole string is displayed on the lcd in this manner and it feels like string is moving. Actually you programmed it to do so.

Coming to the code. First include the necessary library reg51.h that is to be included in every project where you are using 8051(89c51,89c52,89s51,89s52 etc) series microcontrollers in your project. Then Port-3 pins 5 and 6 are used as rs(register set) and en(enable) pins for lcd control . If you dont know what they are you can have a good tutorial here.

  • Lcd Pinout, Registers and Working Description.

Then I defined the string which i want to scroll on the lcd in the form of character array c[15].  Then some commands are defined they are actually moving the cursor one step back after each cycle.

The rest of the code is delay() function to give necessary delay where needed. lcdint() Function to initialize lcd. lcdcmd() is sending commands to lcd. Display() function is sending data to lcd for display. Dont know Commands and Data Send to Lcd. Here is a good tutorial.

  • Difference Between commands and data send to lcd.

Port-1 is used to send data and commands to the lcd. Port-1 is connected to Data pins of lcd.

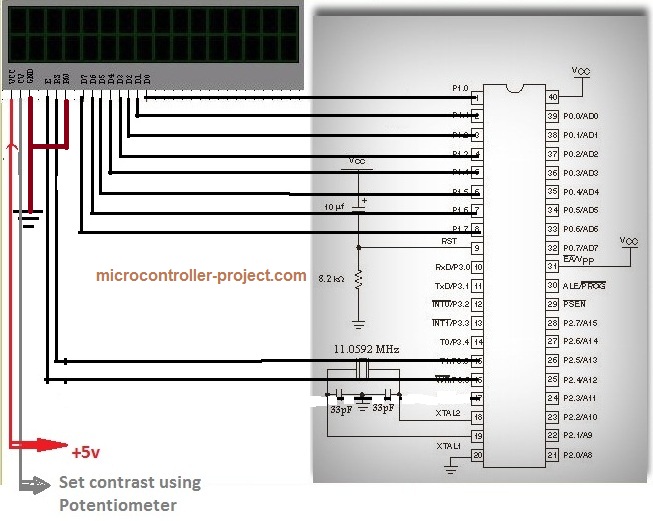

Scrolling text with 89c51- Circuit Diagram

Scrolling text with 89c51- Circuit Diagram
Check Out the Project Video
Standard Lcd Commands Code

Second Method
The more easy way is to scroll the text using standard lcd commands. The code is same like the above method. The only change is in the main function & now the text which i am going to scroll is my web site name “microcontroller-project.com”.

In the main function only the command 0x18 is performing the function of scrolling-moving. It scrolls the printed letter to wards one step left. In the main function while loop prints each letter once and then calls the 0x18 command which moves whole of the text to wards left.From whole of the text i mean the letters which are printed previously and printed in the current instruction.

Note: I am continuously scrolling the text on lcd.

Moving Text on 16x2 lcd- Circuit Diagram

Moving Text on 16×2 lcd- Circuit Diagram
Check Out The project Video and compare it with the video of the above Method Code

 Moving Text With Standard Lcd Commands Code
