This is a simple tutorial on interfacing ultrasonic sensor with nodemcu WiFi module and measure distance. Recently i made an internet of things project which involves an ultrasonic sensor and nodemcu WiFi module in it. Ultrasonic sensor which is used in the project is the most popular one among the diy circuit community, the hcsr04 ultrasonic sensor. You can find many tutorials on internet on how to interface hcsr04 ultrasonic sensor with arduino and other different microcontrollers? But interfacing hcsr04 ultrasonic sensor with nodemcu requires little more effort in understanding power requirements of the two modules. Numerous tutorials are present on internet about interfacing the popular hcsr04 ultrasonic sensor with nodemcu but not a single one worked for me, also many people in comments complaint about the circuit power constraints. So in this tutorial i will elaborate the power requirements of the two modules and how to interface them properly.
HCSR04 ultrasonic sensor measuring distance
Ultrasonic Sensor HC-SR04
Hcsr04 ultrasonic sensor is composed of ultrasonic transmitter, ultrasonic receiver and a control circuit. Hscr04 ultrasonic transmitter transmits ultrasound waves at 40,000 Hz. Transmitted waves bounce back if they hit any flat surface/object in their path. Bounced back waves reaches the ultrasonic receiver. Ultrasonic receiver receives the bounced back waves and notifies the control circuit about it. Control circuit than calculates the time taken by waves to reach back after transmission. Time is than manipulated to approximate the distance traveled by waves or what is the distance between the sensor and the object? from which ultrasound waves bounced back.
Hcsr04 can measure distance between an active range of 2 cm to 4 meters. Hcsr04 requires 5 volts and 15 mA of power for operation. Hcsr04 has four pins. Two are power pins. Vcc is +ve pin apply 5v to this pin and Gnd is ground pin connect -ve of 5v power source with it. The other two pins are Trigger and Echo.
Hcsr04 can measure distance between an active range of 2 cm to 4 meters. Hcsr04 requires 5 volts and 15 mA of power for operation. Hcsr04 has four pins. Two are power pins. Vcc is +ve pin apply 5v to this pin and Gnd is ground pin connect -ve of 5v power source with it. The other two pins are Trigger and Echo.
- Trigger pin is triggered by external controller to out burst an ultrasound wave.
- Echo pin notifies external controller when receiver receives back the bounced back wave.
Module price range in between $1.5 from china to $3.95 from sparkfun.
Nodemcu esp8266 and Hcsr04 ultrasonic sensor power constraints
Nodemcu esp8266 12e works on 3.3 volts and its pins are also 3.3v TTL compatible. Where as ultrasonic sensor Hcsr04 works on 5 volts. We can not power Hcsr04 directly with nodemcu 3.3v power output pins. Many tutorials available online on this topic did this mistake and engineers 😀 are complaining about them. Their are some new Hcsr04 ultrasonic sensor modules coming from china which can work on 3.3 volts. If you have one then you can directly interface it with nodemcu.
Project circuit diagram
I used a cheap power supply which can output 5 volts as well as 3.3 volts. I bought it online from china. 5 volts side of power supply is supplying power to hcsr04 and 3.3 volt side is used to power nodemcu. Note the grounds of 3.3v and 5v are made common.
Trigger and echo pins of hcsr04 ultrasonic sensor is directly connected to GPIO-2 and GPIO-0 or D4 and D3 pins of nodemcu. You people might have a question here why pins are directly connected if voltage levels of both devices are different. The answer is simple, trigger and echo pins output can easily be read by 3.3 volt devices. It worked for me with out any problem and the diy project is running continuously from 72 hours. If it did not work for you then you might insert a logic converter between the two modules. Rest of the connections can be seen in the circuit diagram given below.
Trigger and echo pins of hcsr04 ultrasonic sensor is directly connected to GPIO-2 and GPIO-0 or D4 and D3 pins of nodemcu. You people might have a question here why pins are directly connected if voltage levels of both devices are different. The answer is simple, trigger and echo pins output can easily be read by 3.3 volt devices. It worked for me with out any problem and the diy project is running continuously from 72 hours. If it did not work for you then you might insert a logic converter between the two modules. Rest of the connections can be seen in the circuit diagram given below.
Ultrasonic sensor HC-SR04 with nodemcu esp8266 WiFi module
Coming to project code. Code is written in arduino ide. It is open source you can use and modify it according to your needs. Before using the code please be sure first, you have installed the nodemcu esp8266 support package for arduino ide. If you haven’t then first install it. Lets move to wards the ultrasonic distance calculation before starting with code statements. Ultrasonic sensor did not calculate the distance by it self. Rather it only grabs the time taken by waves to leave transmitter and bounce back to receiver. Time is converted in to distance using the speed of sound in air formula. According to universal speed of sound in air formula
Time = Distance / Speed
Where Speed = speed of sound in air. Which is 340 m/s
Hence reorganizing the formula Distance= Time * 340(speed of sound in air).
Where Speed = speed of sound in air. Which is 340 m/s
Hence reorganizing the formula Distance= Time * 340(speed of sound in air).
The above formula is used in the below code to measure distance from time. At the beginning of the code i defined the nodemcu pins (trigP,echoP) interacting with the hcsr04 ultrasonic sensor. Onward two variables(distance,duration) are defined for storing the time and distance values. In the setup function trigger pin is declared output and echo pin is declared input. Serial communication of nodemcu is also initialized in setup function at 9600 baud rate.
In the loop function trigger pin remain low for 2 seconds after 2 seconds it is made high for 10 us. 10us is time in which the trigger pin sends an output ultrasound signal in 8 cycles. Then the pulse in function reads the bounce back waves and approximates the time. After wards the statement
Build the circuit on bread board and upload the code in nodemcu. After uploading the code in nodemcu open the arduino ide serial monitor. Be sure your nodemcu is connected with your PC and right port and board is selected in the arduino ide. As soon as you open the serial monitor you will see the distance readings appearing in the arduino serial monitor window. Place some object in front of the ultrasonic sensor and measure the distance manually with scale. Than watch for the readings in arduino serial monitor both must be same. If not same must be in 3 mm(Hcsr04 error ratio) apart from the actual/manual reading. Results window is shown below.

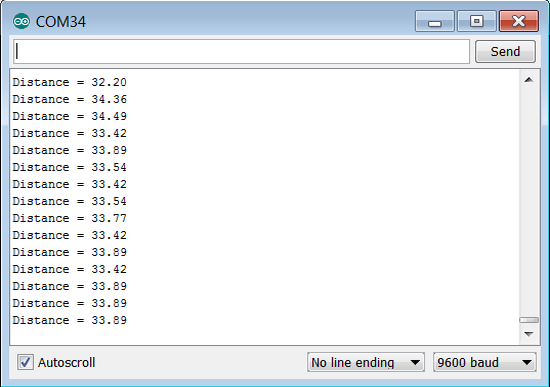

Ultrasonic HC-SR04 output on arduino serial monitor with nodemcu esp8266 12e
Attention
Pulse in function used in the code is an old function used to measure distance with hcsr04 ultrasonic sensor. This function poorly performs with some ultrasonic modules especially which are old or whose control circuit is out of date. This function is also slow in measuring time. A new and fast library is released by arduino to work with ultrasonic sensors. The NewPing Library. This library utilizes internal arduino timers and it did not compile in arduino ide when used for nodemcu. So we can not use NewPing library with nodemcu.
Pulse in function used in the code is an old function used to measure distance with hcsr04 ultrasonic sensor. This function poorly performs with some ultrasonic modules especially which are old or whose control circuit is out of date. This function is also slow in measuring time. A new and fast library is released by arduino to work with ultrasonic sensors. The NewPing Library. This library utilizes internal arduino timers and it did not compile in arduino ide when used for nodemcu. So we can not use NewPing library with nodemcu.
Future Work
I just only showed how to interface hcsr04 ultrasonic sensor with nodemcu esp8266. One can bring upper project in practical functionality by making an automatic and intelligent garage car parking shed control system with it. Shed moves up when car comes home and goes down when the car is in and vise versa. Gsm can be made part of the project to send an sms alert to a house hold individual about car arrival. Nodemcu can be connected to WiFi and incoming car alert can be send to an online server which is maintaining a parking log.
Download the project code. Folder contains the project arduino ide .ino file. Please provide us your feed back on the project. If you have any queries write them below in the comments section.
