Piezo Buzzer

Written By:

  • Kushagra

Image:

Piezo Buzzer

The piezo buzzer produces sound based on reverse of the piezoelectric effect. The generation of pressure variation or strain by the application of electric potential across a piezoelectric material is the underlying principle. These buzzers can be used alert a user of an event corresponding to a switching action, counter signal or sensor input. They are also used in alarm circuits.

The buzzer produces a same noisy sound irrespective of the voltage variation applied to it. It consists of piezo crystals between two conductors. When a potential is applied across these crystals, they push on one conductor and pull on the other. This, push and pull action, results in a sound wave. Most buzzers produce sound in the range of 2 to 4 kHz.
The Red lead is connected to the Input and the Black lead is connected to Ground.
Click to read more about internal structure and working of a piezo buzzer.

Pin Diagram:

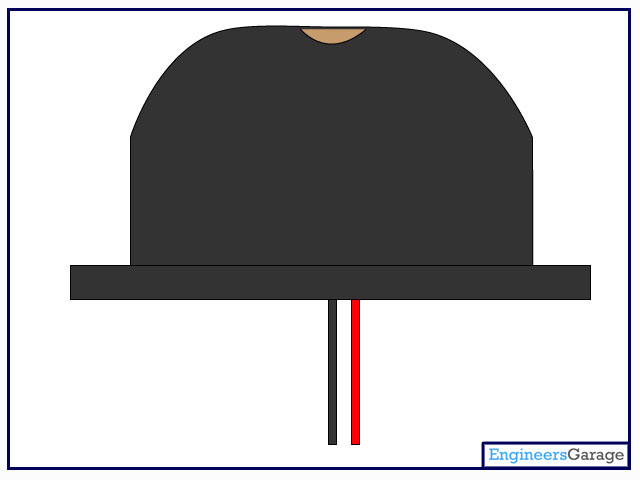

Piezo Buzzer pin diagram, pinout
