In previous Verilog tutorials (especially Tutorial 3), we learned how to design, simulate, and verify digital circuits using Altera’s MAX+II VHDL/Verilog simulator software. (If you haven’t been following this series sequentially, be sure to review the previous tutorials before proceeding.)

In this tutorial, we’ll:

- Write a Verilog program to build various digital logic gates.
- Simulate the program to design the digital circuits for these gates.
- Verify the output waveforms of the circuits and compare them with the truth tables of the corresponding logic gates.

Let’s begin with the digital circuit for which we will write a Verilog program.

### Circuit diagram

### Truth table

The truth table for above circuit:

Now, let’s write a Verilog program. We’ll compile and simulate it, viewing the output as waveforms. Lastly, we’ll verify that the output waveforms match the expected truth table.

(Please refer to the step-by-step procedure outlined in the previous tutorial, which covers how to edit and compile the program, create a waveform file, simulate the program, and generate output waveforms.)

**Verilog program**

**Gate-level modeling:**

module all_gates(y_and,y_or,y_xor,y_nand,y_nor,y_xnor,y_not,a, b);

output y_and,y_or,y_xor,y_nand,y_nor,y_xnor,y_not;

input a,b;

and(y_and, a, b);

or(y_or, a, b);

xor(y_xor, a, b);

nand(y_nand, a, b);

nor(y_nor, a, b);

xnor(y_xnor, a, b);

not(y_not,a);

endmodule

**Dataflow modeling:**

module all_gate(a,b,y_and,y_or,y_nand,y_nor,y_not, y_xor,y_xnor);

input a,b;

output y_and,y_or,y_nand,y_nor,y_not,y_xor,y_xnor;

assign y_and = a & b;

assign y_or = a | b;

assign y_not = ~a;

assign y_nand = ~(a & b);

assign y_nor = ~(a | b);

assign y_xor = a ^ b;

assign y_xnor = ~(a ^ b);

endmodule

Next, compile the program. Create a waveform file with all inputs and outputs listed, and simulate the project to obtain the below result.

*Note:* Make sure to write the program using only one modeling style at a time, and then compile it. You can modify the program using a different modeling style and then recompile it. You can also experiment with a third modeling style, such as behavioral modeling (not provided here), and verify the results.

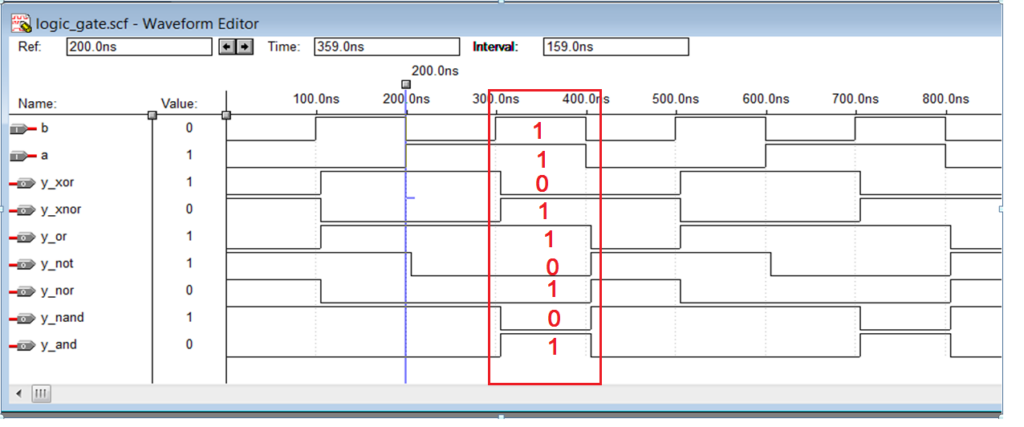

**Simulation waveform**

Now, verify these output waveforms against the truth table for the logic gates. For instance, the highlighted case shows inputs “a = 1″ and “b = 1.” You can also verify the other three cases.

This is how you can create a simple logic gate circuit in Verilog and validate its output using the truth table.

In the next tutorial, we’ll explore A-O-I implementation of NAND, NOR, XOR, and XNOR gates. A-O-I implementation involves building digital circuits using only AND, OR, and NOT gates.
