How to disable JTAG of AVR microcontroller- (Part 24/46)

By Ashutosh Bhatt

JTAG stands for “Joint Test Action Group” which was standardized as the IEEE 1149.1 Standard Test Access Port and Boundary-Scan Architecture in 1990. JTAG is generally used in IC debugging and device programming. Atmega16 consists of one JTAG port which shares four pins with PORTC. Until JTAG port is not disabled, these pins can’t be used as normal I/O pins. This article explores the methods for JTAG disabling.







JTAG interface shares PC2, PC3, PC4 and PC5 of ATmega16. To use these four pins for general I/O operations, JTAG must be disabled. There are two methods for disabling JTAG:
1. By programming
2. Using Avrdude

1. Programming method:
There is a register in atmega16 MCUCSR (MCU control and status register). It consists of JTD (JTAG disable) bit as 7th bit of register. JTAG can be disabled by writing 1 to this bit.
                                    MCUCSR|= (1<<JTD);

This command must be written twice to disable JTAG. This is a temporary method of JTAG disabling because using this method, it is required to write the above command in every program. For permanent disabling next method can be used.

2. Using Avrdude:
JTAG can be permanently disabled by configuring two fuse bits, OCDEN and JTAGEN (must be disabled). This is done by using Avrdude software. The following instruction should be followed carefully to disable the JTAG
1. Connect your microcontroller burner circuit to your system.
2. Go start>run and write “cmd”.
3. Write command “avrdude –p <microcontroller code> –c <programmer type> -t” in Command window

Commands                    -p                to select microcontroller
                                    -c                to select programmer type
                                    -t                 to enter in AVRDUDE’s interactive window.

Microcontroller code     m8                 for ATmega8
                                  m16               for ATmega16
                                  m32               for Atmega32

Programmer types are       bsd                for parallel port programmer (Brain Dean’s programmer)
                                       usbasp           for USB programmer (USBasp)

The following picture shows the output of above command.

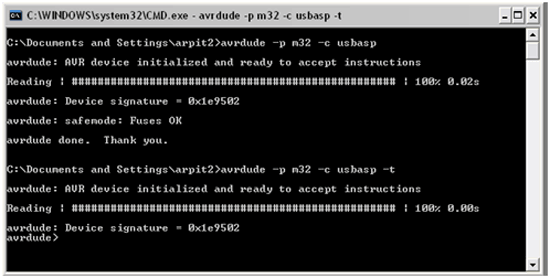

Output of Commands using Avrdude Software to disable JTAG
Fig. 2: Output of Commands using Avrdude Software to disable JTAG

4. Write command “d lfuse” and “d hfuse” at avrdude interactive window to get values of low Fuse byte and high fuse byte.

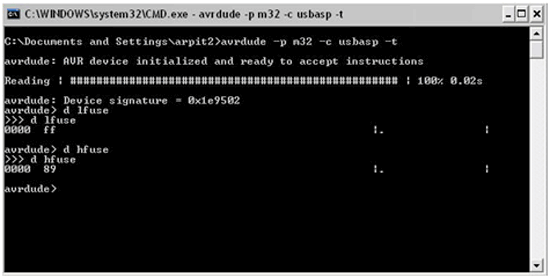

Low fuse and High Fuse Byte Values on avrdude interactive window
Fig. 3: Low fuse and High Fuse Byte Values on avrdude interactive window

5. As shown in above picture the value of Fuse bytes is 0x89FF. This value shows that JTAG port of the microcontroller is enabled. To disable JTAG, the value of fuse bytes must be 0xC9FF.
6. To write 0xC9 in higher fuse byte the command “w hfuse 0 0xc9” is written. Lower byte will remain same.

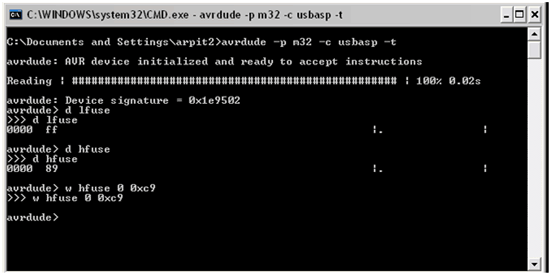

Higher Fuse Byte Command to Disable JTAG in AVR
Fig. 4: Higher Fuse Byte Command to Disable JTAG in AVR

7. Write “d hfuse” command again to make it confirm that value is written or not.

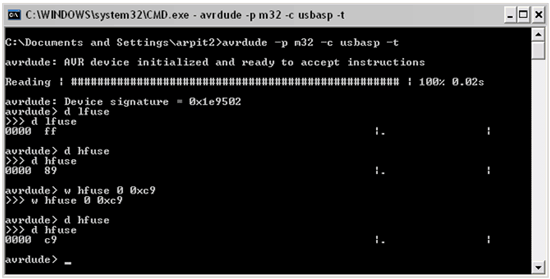

Command to Confirm JTAG Value
Fig. 5: Command to Confirm JTAG Value

8. For terminating this window by type “quit”.

By this operation JTAG will be disabled and PORTC will work as normal I/O port.



Project Source Code

###


//Program to disable JTAG of AVR microcontroller
#define F_CPU 12000000UL
#include<avr/io.h>
#include<util/delay.h>

int main(void)
{
int i=0;
DDRC=0xFF; // Port C as output port
PORTC=0x00;

/* JTAG port is enabled*/
while(i<=10)
{
PORTC=~PORTC; // toggle all bits of port C
_delay_ms(1000); //1 sec delay
i++;
}

/*Now diable JTAG port*/
MCUCSR|=(1<<JTD); // sendig 1 to JTD
MCUCSR|=(1<<JTD);

while(1)
{
PORTC=~PORTC;
_delay_ms(1000);
}

}


###
