Infineon introduces gate driver IC for 24V/48V brushless DC motor applications

Infineon Technologies AG introduces the MOTIX TLE9140EQW gate driver IC for brushless DC motors targeting the demanding 24/48 V market. The TLE9140 is tailored for automotive motor control applications featuring higher voltage requirements from 24 V up to a maximum of 72 V, where higher system reliability and faster switching behavior are necessary. The IC is the ideal complement to Infineon’s MOTIX MCU TLE987x and TLE989x 32-bit motor control SoC solutions but is also suitable as a 48 V BLDC driver with common MCUs on the market. Typical applications include pumps and fans, windshield wipers, the HVAC module, or e-compressors. In addition, the TLE9140 is applied as a 3-phase motor gate driver for applications in commercial, construction, and agricultural vehicles as well as in light electric vehicles such as eBikes, eScooters, or eMotorcycles.

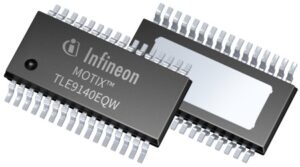

The gate driver IC offers functional safety according to ISO 26262 ASIL B. It is housed in a small TS-DSO-32 package. The IC offers a high voltage capability of up to 110 V, a gate driver capability of ~230 nC/MOSFET up to 20 kHz as well as SPI communication. It has an active low-side (LS) freewheeling function during V _SM overvoltage (OV) and a wide range of important diagnostic and protection functions such as timeout-watchdog, drain-source monitoring, overvoltage, undervoltage, cross-current and over-temperature protection as well as off-state diagnostics.

In addition, the TLE9140 includes Infineon’s patented gate shaping function, an adaptive MOSFET control that can compensate for fluctuations in the MOSFET parameters in the system. It automatically adjusts the gate current to achieve the desired switching behavior. This allows the system to be optimized in terms of electromagnetic emissions (EMI) by slower slew rates, while minimizing power dissipation through shorter dead times and shorter rise/fall times.

To accelerate the evaluation and design-in process, Infineon’s MOTIX motor control ICs are accompanied by a wide range of software and tools. The TLE9140 evaluation board is user-friendly and enables rapid evaluation and prototyping. In addition, Infineon provides a configuration wizard and a device driver for the TLE9140 that provides a simple API for generating the control frames for the external bridge driver via SPI. Both are available free of charge.

The MOTIX TLE9140 motor gate driver is available now.
