Moving LED Display

By Debajyoti Mondal June 24, 2011

[[wysiwyg_imageupload:1507:]]



This project is submitted by Mr. Debajyoti Mondal from West Bengal, India.






Moving LED Display is very active application of digital electronics. The application of this device can be found everywhere. From name plate display to train number display this display is used. The power consumption is 70% less than primitive display.

The main advantage of using this display is the information displaying on the display can easily be change by changing the program in microcontroller. And also animation is possible during displaying the massage. This is undoubtedly acceptable in the high society. There is another advantage of this device i.e. less cost-effective. The LED used in this device is RED LED having wavelength 660nm. Hence the displaying massage can be seen from very high distance.

The materials has been used in this device is very easily available in the market. So the raw material availability creates no problem during device manufacture.

Reason for Choosing this Project:

·         Broad field for the application of Microcontroller
·         Core Field Application
·         Components availability in the market.
·         Chance to work with High level Sub-routine In microcontroller program.
·         The Device has less power Consumption.
Summary:
Moving LED display displays the information on the Display board written in any language moving from right to left in animated form. This Display consists of four Units.
·         Power Supply Unit.
·         Register Unit.
·         Display Unit.
·         Controller Unit.

Power Supply Unit: – This Unit consists three sections:

1)       Transformer Section, 2) Rectifier Section, and 3) Regulator Section.

In Transformer Section a step-down transformer has been used to step-down voltage level from 240V to 12V (AC). The rating of the transformer is 12V,3A (36W).
In Rectifier Section a bridge rectifier circuit has been used to convert 12V AC to 15V DC. Because all the components used in this circuit work at 5V DC. Diode 1N5408 has been used in this circuit to form bridge rectifier. Because this diode has the capability of handling high Current flow



In Regulator Section IC7805 has been used to regulate the Voltage level at 5V DC. This component has very high stabile voltage level output.

Register Unit:

Register unit contains cascaded connection of serial to parallel shift resisters (IC74164). This unit controls the massage displaying speed and direction of movement. The output port of this unit is output port of the shift resister (from Qa to Qh) which is connected to the LEDs by the wired connection.
The number of output pins of IC74164 is 8. For a Matrix display if the number of LEDs in a Row is 48 then the required number ICs is 6 to control a single row. The number of row of ICs is depends on the number of row in the Matrix display.
A synchronous Clock is given to all ICs in this Unit. This clock frequency controls the displaying massage speed. If clock given to the ICs is not synchronous then the distortion may occur during displaying.8 pins of the port1 of the Microcontroller are connected to the inputs of the rows of the register unit.
Digital signal coming out from microcontroller is fed to the pin A of the IC74164. The serial input from Microcontroller is converted to the parallel output in the Register Unit. These parallel outputs are then connected to the LEDs.
Register Unit works on the negative edge clock frequency. When a serial input from Microcontroller is given to register this input is shifted to the right after first clock pulse. Again for next serial input and clock pulse similar shifting is occurred.
Using this principle Massage is moved from Left to right with a certain speed.

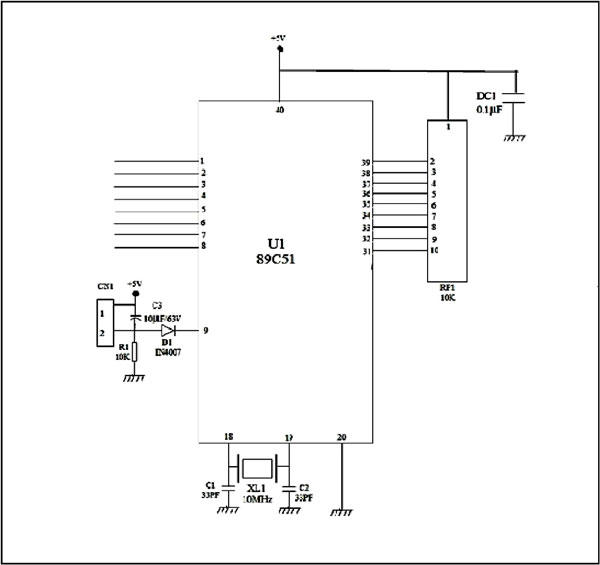

Control Unit:

Control unit is the section which deals with controlling the whole (display unit & register unit) circuit by logic operations. This unit consists of a microcontroller and timer. It provides required digital signal. The Figure in circuit diagram t shows the circuit diagram of the microcontroller IC 89C51.
The synchronization is performed between generation of digital signal by microcontroller is done by delay program of the microcontroller. The digital information is created here by running some instructions in the form of microcontroller program.

The execution time of this program is totally depends on the crystal oscillator frequency of the microcontroller. Microcontroller resets the whole circuit after switching on the power. This digital signal provided by the microcontroller is fed to the register unit as shown in circuit diagram tab2.

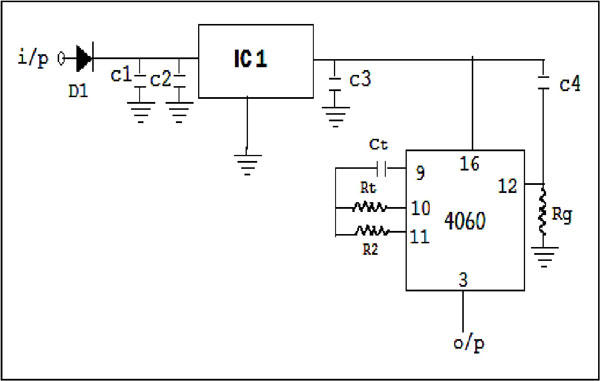

Timer section consists of timer circuit. The timer circuit controls the speed of information movement in the display by using the clock. This section also controls the register unit function. The digital information fed to the register by the microcontroller is moved to the left from the right with a certain rate.
This rate of shifting of the signals in the register depends on the timer frequency. The clock frequency of the timer is very much stable. The duty cycle of the timer is 50%. The rate of the speed of information in the moving display can be changed by changing the values of Ct & Rt as shown in the figure of the timer above.
The logic high and logic low is determined with respect to the clock signal. Fig. shows how the signals from microcontroller to be considered as logic high and logic low.
Display Unit:
On the field of Digital electronics the use of Matrix display is very huge. This unit consist a Matrix form display of LEDs. LEDs are arranged in matrix form with equal-spaced. The LEDs are connected with Register output pins (Qa – Qh). The advantage of Using this display is that Massage Moving speed, direction can be controlled with sufficient logical operation. This type of display provides very small power consumption facility.
The massage is displayed on the display by configuring each and every LEDs of the display. This configuration is done by a logical device e.g. Microcontroller, Microprocessors etc.

In this project we have used this display because the component used, are easily available in the market and also cheap.

 Assembled Circuit Analysis: Fig. Shows the Assembly

 Circuit of Moving LED Display
It consists of mainly power supply unit, register unit, control unit (microcontroller & timer) and display unit.
First power is supplied to all the sections of the circuit from the power supply unit. 230v main ac power is first converted into 15v step down dc supply to operate the digital circuit. Then the microcontroller generates and provides the digital signal. It performs the logical operations.
The digital information created here is synchronized by some delay program of the microcontroller. The digital information is created here by running some instructions in the form of microcontroller program. The execution time of this program is totally depends on the crystal oscillator frequency of the microcontroller. Microcontroller resets the whole circuit after switching on the power.
The digital signal provided by the microcontroller is fed to the register unit which consists of shift registers. Here the information shifts from right to left. This data moves with certain delay introduced by the microcontroller itself.
The rate of shifting of the signals depends on the timer frequency. Register IC 74164 can be reset by sending a logical high signal at the pin clr (pin no:- 09). Signals are shifted from Qa to Qh.
The display unit is a matrix display, we used here. It is connected to the register unit. The pins Qa to Qh of register unit are connected to the display. No of light emitting diodes (LED) are used here to form the display section.
The timer unit consists of the timer circuit. It controls the speed of information movement in the display by using the clock.







Project Source Code



Project Source Code

###

  ORG 00H
LCALL DELAY_P
LOOP: LCALL STAR_TWO
LCALL DELAY_ONE
LCALL E_C_E
LCALL DELAY_ONE
LCALL STAR_TWO
LCALL DELAY_Z
LCALL STAR_TWO
LCALL DELAY_ONE
LCALL H_O_D
LCALL DELAY_ONE
LCALL STAR_TWO
LCALL DELAY_Z
LCALL STAR_ONE_V
LCALL A_K_J
LCALL STAR_ONE_V
LCALL M_K_P
LCALL STAR_ONE_V
LCALL S_BOSE
LCALL STAR_ONE_V
LCALL S_SINHA
LCALL STAR_ONE_V
LCALL K_R
LCALL STAR_ONE_V
LCALL S_G
LCALL STAR_ONE_V
LCALL A_B
LCALL STAR_ONE_V
LCALL J_A_G_A
LCALL STAR_ONE_V
LCALL S_PAUL
LCALL STAR_ONE_V
LCALL R_K_M
LCALL STAR_ONE_V
LCALL T_S
LCALL STAR_ONE_V
LCALL A_BASU
LCALL STAR_ONE_V
LCALL B_BAG
LCALL STAR_ONE_V
LCALL S_MUKHARJEE
LCALL STAR_ONE_V
LCALL A_DAS
LCALL STAR_ONE_V
LCALL D_CHOWDHURY
LCALL STAR_ONE_V
LCALL B_P_DE
LCALL STAR_ONE_V
LCALL A_SARKHEL
LCALL STAR_ONE_V
LCALL A_ROY
LCALL STAR_ONE_V
LCALL AVI_DAS
LCALL STAR_ONE_V
LCALL LONG_PAUSE
LJMP LOOP
;**********************************************
;**********************************************
STAR_ONE: MOV P1,#24H
LCALL DELAY_ONE
MOV P1,#66H
LCALL DELAY_ONE
MOV P1,#18H
LCALL DELAY_TWO
MOV P1,#66H
LCALL DELAY_ONE
MOV P1,#24H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
DELAY_P: MOV R3,#251
  X_P_ONE: MOV R5,#250
X_P_TWO: MOV R7,#04H
  X_P_THREE: DJNZ R7,X_P_THREE
        DJNZ R5,X_P_TWO
DJNZ R3,X_P_ONE
        RET
;**********************************************
;**********************************************
STAR_TWO: MOV R0,#02H
P_ONE: LCALL STAR_ONE
DJNZ R0,P_ONE
RET
;**********************************************
;**********************************************
STAR_ONE_V: MOV P1,#00H
LCALL DELAY_ONE
MOV P1,#24H
LCALL DELAY_ONE
MOV P1,#66H
LCALL DELAY_ONE
MOV P1,#18H
LCALL DELAY_TWO
MOV P1,#66H
LCALL DELAY_ONE
MOV P1,#24H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_TWO
RET
;**********************************************
;**********************************************
DELAY_ONE: MOV R2,#220
  X_ONE: MOV R1,#230
X_TWO: MOV R5,#03H
  X_THREE: DJNZ R5,X_THREE
DJNZ R1,X_TWO
        DJNZ R2,X_ONE
        RET
;**********************************************
;**********************************************
DELAY_Z: MOV R3,#25
P_Z: LCALL DELAY_ONE
DJNZ R3,P_Z
RET
;**********************************************
;**********************************************
DELAY_TWO: MOV R3,#02H
P_TWO: LCALL DELAY_ONE
DJNZ R3,P_TWO
RET
;**********************************************
;**********************************************
DELAY_THREE: MOV R6,#03H
P_THREE: LCALL DELAY_ONE
DJNZ R6,P_THREE
RET
;**********************************************
;**********************************************
LONG_PAUSE: MOV R7,#120H
P_P: LCALL DELAY_ONE
DJNZ R0,P_P
RET
;**********************************************
;**********************************************
DELAY_FOUR: MOV R7,#04H
P_FOUR: LCALL DELAY_ONE
DJNZ R7,P_FOUR
RET
;**********************************************
;**********************************************
E_C_E: LCALL E_CAP
LCALL L_CAP
LCALL E_CAP
LCALL C_CAP
LCALL T_CAP
LCALL R_CAP
LCALL O_CAP
LCALL N_CAP
LCALL I_CAP
LCALL C_CAP
LCALL S_CAP
LCALL DELAY_ONE
LCALL A_ONE
LCALL N_CAP
LCALL D_CAP
LCALL DELAY_ONE
LCALL C_CAP
LCALL O_CAP
LCALL M_CAP
LCALL M_CAP
LCALL U_CAP
LCALL N_CAP
LCALL I_CAP
LCALL C_CAP
LCALL A_ONE
LCALL T_CAP
LCALL I_CAP
LCALL O_CAP
LCALL N_CAP
LCALL DELAY_ONE
LCALL E_CAP
LCALL N_CAP
LCALL G_CAP
LCALL G_CAP
LCALL D_O_T
RET
;**********************************************
;**********************************************
H_O_D: LCALL D_CAP
LCALL R_CAP
LCALL D_O_T
LCALL DELAY_ONE
LCALL S_CAP
LCALL U_CAP
LCALL N_CAP
LCALL A_ONE
LCALL N_CAP
LCALL D_CAP
LCALL A_ONE
LCALL N_CAP
LCALL DELAY_ONE
LCALL B_CAP
LCALL H_CAP
LCALL U_CAP
LCALL N_CAP
LCALL I_CAP
LCALL A_ONE
LCALL DELAY_ONE
LCALL B_STRT
LCALL H_CAP
LCALL O_CAP
LCALL D_CAP
LCALL B_STP
RET
;**********************************************
;**********************************************
A_K_J: LCALL MR_DOT
LCALL A_ONE
LCALL S_CAP
LCALL I_CAP
LCALL M_CAP
LCALL DELAY_ONE
LCALL K_CAP
LCALL R_CAP
LCALL D_O_T
LCALL DELAY_ONE
LCALL J_CAP
LCALL A_ONE
LCALL N_CAP
LCALL A_ONE
RET
;**********************************************
;**********************************************
M_K_P: LCALL PROF_DOT
LCALL M_CAP
LCALL A_ONE
LCALL L_CAP
LCALL A_ONE
LCALL Y_CAP
LCALL DELAY_ONE
LCALL K_CAP
LCALL R_CAP
LCALL D_O_T
LCALL DELAY_ONE
LCALL P_CAP
LCALL A_ONE
LCALL N_CAP
LCALL D_CAP
LCALL I_CAP
LCALL T_CAP
RET
;**********************************************
;**********************************************
S_BOSE: LCALL PROF_DOT
LCALL S_CAP
LCALL U_CAP
LCALL B_CAP
LCALL H_CAP
LCALL A_ONE
LCALL S_CAP
LCALL I_CAP
LCALL S_CAP
LCALL DELAY_ONE
LCALL B_CAP
LCALL O_CAP
LCALL S_CAP
LCALL E_CAP
RET
;**********************************************
;**********************************************
S_SINHA: LCALL M_CAP
LCALL R_CAP
LCALL S_CAP
LCALL D_O_T
LCALL DELAY_ONE
LCALL S_CAP
LCALL O_CAP
LCALL M_CAP
LCALL D_CAP
LCALL U_CAP
LCALL T_CAP
LCALL T_CAP
LCALL A_ONE
LCALL DELAY_ONE
LCALL S_I_N_H_A
RET
;**********************************************
;**********************************************
K_R: LCALL MR_DOT
LCALL K_CAP
LCALL U_CAP
LCALL S_CAP
LCALL H_CAP
LCALL A_ONE
LCALL L_CAP
LCALL DELAY_ONE
LCALL R_O_Y
RET
;**********************************************
;**********************************************
S_G: LCALL MR_DOT
LCALL S_CAP
LCALL O_CAP
LCALL U_CAP
LCALL R_CAP
LCALL A_ONE
LCALL G_CAP
LCALL N_CAP
LCALL I_CAP
LCALL DELAY_ONE
LCALL G_CAP
LCALL H_CAP
LCALL O_CAP
LCALL S_CAP
LCALL H_CAP
RET
;**********************************************
;**********************************************
A_B: LCALL MR_DOT
LCALL A_ONE
LCALL M_CAP
LCALL I_CAP
LCALL T_CAP
LCALL DELAY_ONE
LCALL B_CAP
LCALL H_CAP
LCALL A_ONE
LCALL T_CAP
LCALL T_CAP
LCALL A_ONE
LCALL C_CAP
LCALL H_CAP
LCALL A_ONE
LCALL R_CAP
LCALL Y_CAP
LCALL Y_CAP
LCALL A_ONE
RET
;**********************************************
;**********************************************
J_A_G_A: LCALL MR_DOT
LCALL J_CAP
LCALL A_ONE
LCALL G_CAP
LCALL A_ONE
LCALL N_CAP
LCALL N_CAP
LCALL A_ONE
LCALL T_CAP
LCALL H_CAP
LCALL DELAY_ONE
LCALL S_CAP
LCALL A_ONE
LCALL M_CAP
LCALL A_ONE
LCALL N_CAP
LCALL T_CAP
LCALL A_ONE
RET
;**********************************************
;**********************************************
S_PAUL: LCALL MR_DOT
LCALL S_CAP
LCALL U_CAP
LCALL M_CAP
LCALL A_ONE
LCALL N_CAP
LCALL DELAY_ONE
LCALL P_CAP
LCALL A_ONE
LCALL U_CAP
LCALL L_CAP
RET
;**********************************************
;**********************************************
R_K_M: LCALL MR_DOT
LCALL R_CAP
LCALL A_ONE
LCALL J_CAP
LCALL DELAY_ONE
LCALL K_CAP
LCALL R_CAP
LCALL D_O_T
LCALL DELAY_ONE
LCALL M_CAP
LCALL A_ONE
LCALL I_CAP
LCALL T_CAP
LCALL Y_CAP
RET
;**********************************************
;**********************************************
T_S: LCALL MR_DOT
LCALL T_CAP
LCALL I_CAP
LCALL R_CAP
LCALL T_CAP
LCALL H_CAP
LCALL A_ONE
LCALL D_CAP
LCALL I_CAP
LCALL P_CAP
LCALL DELAY_ONE
LCALL S_I_N_H_A
RET
;**********************************************
;**********************************************
A_BASU: LCALL MR_DOT
LCALL A_ONE
LCALL N_CAP
LCALL I_CAP
LCALL N_CAP
LCALL D_CAP
LCALL Y_CAP
LCALL A_ONE
LCALL DELAY_ONE
LCALL B_CAP
LCALL A_ONE
LCALL S_CAP
LCALL U_CAP
RET
;**********************************************
;**********************************************
B_BAG: LCALL MR_DOT
LCALL B_CAP
LCALL R_CAP
LCALL A_ONE
LCALL N_CAP
LCALL I_CAP
LCALL B_CAP
LCALL R_CAP
LCALL A_ONE
LCALL T_CAP
LCALL A_ONE
LCALL DELAY_ONE
LCALL B_CAP
LCALL A_ONE
LCALL G_CAP
RET
;**********************************************
;**********************************************
S_MUKHARJEE: LCALL MR_DOT
LCALL S_CAP
LCALL U_CAP
LCALL R_CAP
LCALL A_ONE
LCALL J_CAP
LCALL I_CAP
LCALL T_CAP
LCALL DELAY_ONE
LCALL M_CAP
LCALL U_CAP
LCALL K_CAP
LCALL H_CAP
LCALL E_CAP
LCALL R_CAP
LCALL J_CAP
LCALL E_CAP
LCALL E_CAP
RET
;**********************************************
;**********************************************
A_DAS: LCALL MR_DOT
LCALL A_ONE
LCALL K_CAP
LCALL I_CAP
LCALL N_CAP
LCALL C_CAP
LCALL H_CAP
LCALL A_ONE
LCALL N_CAP
LCALL DELAY_ONE
LCALL D_A_S
RET
;**********************************************
;**********************************************
D_CHOWDHURY: LCALL MR_DOT
LCALL D_CAP
LCALL I_CAP
LCALL B_CAP
LCALL Y_CAP
LCALL E_CAP
LCALL N_CAP
LCALL D_CAP
LCALL U_CAP
LCALL DELAY_ONE
LCALL C_CAP
LCALL H_CAP
LCALL O_CAP
LCALL W_CAP
LCALL D_CAP
LCALL H_CAP
LCALL U_CAP
LCALL R_CAP
LCALL Y_CAP
RET
;**********************************************
;**********************************************
B_P_DE: LCALL MR_DOT
LCALL B_CAP
LCALL I_CAP
LCALL S_CAP
LCALL H_CAP
LCALL N_CAP
LCALL U_CAP
LCALL DELAY_ONE
LCALL P_CAP
LCALL R_CAP
LCALL A_ONE
LCALL S_CAP
LCALL A_ONE
LCALL D_CAP
LCALL DELAY_ONE
LCALL D_CAP
LCALL E_CAP
RET
;**********************************************
;**********************************************
A_SARKHEL: LCALL MR_DOT
LCALL A_ONE
LCALL B_CAP
LCALL H_CAP
LCALL I_CAP
LCALL S_CAP
LCALL H_CAP
LCALL E_CAP
LCALL K_CAP
LCALL DELAY_ONE
LCALL S_CAP
LCALL A_ONE
LCALL R_CAP
LCALL K_CAP
LCALL H_CAP
LCALL E_CAP
LCALL L_CAP
RET
;**********************************************
;**********************************************
A_ROY: LCALL MR_DOT
LCALL A_ONE
LCALL V_CAP
LCALL I_CAP
LCALL S_CAP
LCALL A_ONE
LCALL N_CAP
LCALL K_CAP
LCALL A_ONE
LCALL R_CAP
LCALL DELAY_ONE
LCALL R_O_Y
RET
;**********************************************
;**********************************************
AVI_DAS: LCALL MR_DOT
LCALL A_ONE
LCALL V_CAP
LCALL I_CAP
LCALL S_CAP
LCALL H_CAP
LCALL E_CAP
LCALL K_CAP
LCALL DELAY_ONE
LCALL D_A_S
RET
;**********************************************
;**********************************************
MR_DOT: LCALL M_CAP
LCALL R_CAP
LCALL D_O_T
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
PROF_DOT: LCALL P_CAP
LCALL R_CAP
LCALL O_CAP
LCALL F_CAP
LCALL D_O_T
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
R_O_Y: LCALL R_CAP
LCALL O_CAP
LCALL Y_CAP
RET
;**********************************************
;**********************************************
S_I_N_H_A: LCALL S_CAP
LCALL I_CAP
LCALL N_CAP
LCALL H_CAP
LCALL A_ONE
RET
;**********************************************
;**********************************************
D_A_S: LCALL D_CAP
LCALL A_ONE
LCALL S_CAP
RET
;**********************************************
;**********************************************
D_O_T: MOV P1,#0E0H
LCALL DELAY_THREE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
B_STRT: MOV P1,#3CH
LCALL DELAY_ONE
MOV P1,#42H
LCALL DELAY_ONE
MOV P1,#81H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
B_STP: MOV P1,#81H
LCALL DELAY_ONE
MOV P1,#42H
LCALL DELAY_ONE
MOV P1,#3CH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
A_ONE: MOV P1,#0FCH
LCALL DELAY_ONE
MOV P1,#0FEH
LCALL DELAY_ONE
MOV P1,#33H
LCALL DELAY_TWO
MOV P1,#0FEH
LCALL DELAY_ONE
MOV P1,#0FCH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
B_CAP: MOV P1,#255
LCALL DELAY_TWO
MOV P1,#0D9H
LCALL DELAY_TWO
MOV P1,#255
LCALL DELAY_ONE
MOV P1,#6EH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
C_CAP: MOV P1,#7EH
LCALL DELAY_ONE
MOV P1,#0FFH
LCALL DELAY_ONE
MOV P1,#0C3H
LCALL DELAY_TWO
MOV P1,#0E7H
LCALL DELAY_ONE
MOV P1,#66H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
D_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#0C3H
LCALL DELAY_TWO
MOV P1,#0FFH
LCALL DELAY_ONE
MOV P1,#7EH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
E_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#0DBH
LCALL DELAY_THREE
MOV P1,#0C3H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
F_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#1BH
LCALL DELAY_THREE
MOV P1,#03H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
G_CAP: MOV P1,#7EH
LCALL DELAY_ONE
MOV P1,#0FFH
LCALL DELAY_ONE
MOV P1,#0C3H
LCALL DELAY_ONE
MOV P1,#0D3H
LCALL DELAY_ONE
MOV P1,#0F3H
LCALL DELAY_ONE
MOV P1,#72H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
H_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#18H
LCALL DELAY_TWO
MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
I_CAP: MOV P1,#0C3H
LCALL DELAY_TWO
MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#0C3H
LCALL DELAY_TWO
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
J_CAP: MOV P1,#03H
LCALL DELAY_ONE
MOV P1,#73H
LCALL DELAY_ONE
MOV P1,#0F3H
LCALL DELAY_ONE
MOV P1,#0C3H
LCALL DELAY_ONE
MOV P1,#0FFH
LCALL DELAY_ONE
MOV P1,#7FH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
K_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#18H
LCALL DELAY_ONE
MOV P1,#3CH
LCALL DELAY_ONE
MOV P1,#0E7H
LCALL DELAY_ONE
MOV P1,#0C3H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
L_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#0C0H
LCALL DELAY_FOUR
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
M_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#06H
LCALL DELAY_ONE
MOV P1,#0CH
LCALL DELAY_ONE
MOV P1,#06H
LCALL DELAY_ONE
MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
N_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#06H
LCALL DELAY_ONE
MOV P1,#1CH
LCALL DELAY_ONE
MOV P1,#70H
LCALL DELAY_ONE
MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
O_CAP: MOV P1,#7EH
LCALL DELAY_ONE
MOV P1,#0FFH
LCALL DELAY_ONE
MOV P1,#0C3H
LCALL DELAY_TWO
MOV P1,#0FFH
LCALL DELAY_ONE
MOV P1,#7EH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
P_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#1BH
LCALL DELAY_THREE
MOV P1,#0EH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
R_CAP: MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#1BH
LCALL DELAY_TWO
MOV P1,#0FFH
LCALL DELAY_ONE
MOV P1,#0EEH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
S_CAP: MOV P1,#66H
LCALL DELAY_ONE
MOV P1,#0CFH
LCALL DELAY_ONE
MOV P1,#0DBH
LCALL DELAY_ONE
MOV P1,#0F3H
LCALL DELAY_ONE
MOV P1,#0E3H
LCALL DELAY_ONE
MOV P1,#66H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
T_CAP: MOV P1,#03H
LCALL DELAY_TWO
MOV P1,#0FFH
LCALL DELAY_TWO
MOV P1,#03H
LCALL DELAY_TWO
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
U_CAP: MOV P1,#7FH
LCALL DELAY_ONE
MOV P1,#0FFH
LCALL DELAY_ONE
MOV P1,#0C0H
LCALL DELAY_TWO
MOV P1,#0FFH
LCALL DELAY_ONE
MOV P1,#7FH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
V_CAP: MOV P1,#1FH
LCALL DELAY_ONE
MOV P1,#3FH
LCALL DELAY_ONE
MOV P1,#0C0H
LCALL DELAY_TWO
MOV P1,#3FH
LCALL DELAY_ONE
MOV P1,#1FH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
W_CAP: MOV P1,#3FH
LCALL DELAY_ONE
MOV P1,#7FH
LCALL DELAY_ONE
MOV P1,#0C0H
LCALL DELAY_ONE
MOV P1,#70H
LCALL DELAY_ONE
MOV P1,#0C0H
LCALL DELAY_ONE
MOV P1,#7FH
LCALL DELAY_ONE
MOV P1,#3FH
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET
;**********************************************
;**********************************************
Y_CAP: MOV P1,#07H
LCALL DELAY_ONE
MOV P1,#0FH
LCALL DELAY_ONE
MOV P1,#0F0H
LCALL DELAY_TWO
MOV P1,#0FH
LCALL DELAY_ONE
MOV P1,#07H
LCALL DELAY_ONE
MOV P1,#00H
LCALL DELAY_ONE
RET


###




Circuit Diagrams

Movint-LED-Display6
Movint-LED-Display7


Filed Under: Electronic Projects
Tagged With: assembly code, display, led, microcontroller


Next Article

← Previous Article
Next Article →

Questions related to this article?
👉Ask and discuss on Electro-Tech-Online.com and EDAboard.com forums.



Tell Us What You Think!! Cancel reply

You must be logged in to post a comment.

EE TECH TOOLBOX

“ee
Tech Toolbox: Internet of Things
Explore practical strategies for minimizing attack surfaces, managing memory efficiently, and securing firmware. Download now to ensure your IoT implementations remain secure, efficient, and future-ready.

EE Learning Center

EE Learning Center
“engineers
EXPAND YOUR KNOWLEDGE AND STAY CONNECTED
Get the latest info on technologies, tools and strategies for EE professionals.

HAVE A QUESTION?

Have a technical question about an article or other engineering questions? Check out our engineering forums EDABoard.com and Electro-Tech-Online.com where you can get those questions asked and answered by your peers!


RSS EDABOARD.com Discussions

  • ADS optimization cockpit window does not open
  • Voltage mode pushpull is a nonsense SMPS?
  • Will this TL084C based current clamp circuit work?
  • How to determine the maximum PAD frequency ?
  • Xiaomi Mijia 1C Robot problem of going backwards while working

RSS Electro-Tech-Online.com Discussions

  • PIC KIT 3 not able to program dsPIC
  • Siemens large industrial PLC parts
  • Parts required for a personal project
  • Cant log in to Easy PC forum
  • Failure of polypropylene motor-run capacitors

Featured – RPi Python Programming (27 Part)

  • RPi Python Programming 21: The SIM900A AT commands
  • RPi Python Programming 22: Calls & SMS using a SIM900A GSM-GPRS modem
  • RPi Python Programming 23: Interfacing a NEO-6MV2 GPS module with Raspberry Pi
  • RPi Python Programming 24: I2C explained
  • RPi Python Programming 25 – Synchronous serial communication in Raspberry Pi using I2C protocol
  • RPi Python Programming 26 – Interfacing ADXL345 accelerometer sensor with Raspberry Pi

Recent Articles

  • AC-DC power supply extends voltage range to 800 V DC
  • Infineon’s inductive sensor integrates coil system driver, signal conditioning circuits and DSP
  • Arm Cortex-M23 MCU delivers 87.5 µA/MHz active mode
  • STMicroelectronics releases automotive amplifiers with in-play open-load detection
  • Convection-cooled power controller integrates EtherCat connectivity

EE ENGINEERING TRAINING DAYS

engineering

Submit a Guest Post

submit a guest post
Engineers Garage
  • Analog IC TIps
  • Connector Tips
  • Battery Power Tips
  • DesignFast
  • EDABoard Forums
  • EE World Online
  • Electro-Tech-Online Forums
  • EV Engineering
  • Microcontroller Tips
  • Power Electronic Tips
  • Sensor Tips
  • Test and Measurement Tips
  • 5G Technology World
  • Subscribe to our newsletter
  • About Us
  • Contact Us
  • Advertise

Copyright © 2025 WTWH Media LLC. All Rights Reserved. The material on this site may not be reproduced, distributed, transmitted, cached or otherwise used, except with the prior written permission of WTWH Media
Privacy Policy

Search Engineers Garage

  • Electronic Projects & Tutorials
    • Electronic Projects
      • Arduino Projects
      • AVR
      • Raspberry pi
      • ESP8266
      • BeagleBone
      • 8051 Microcontroller
      • ARM
      • PIC Microcontroller
      • STM32
    • Tutorials
      • Audio Electronics
      • Battery Management
      • Brainwave
      • Electric Vehicles
      • EMI/EMC/RFI
      • Hardware Filters
      • IoT tutorials
      • Power Tutorials
      • Python
      • Sensors
      • USB
      • VHDL
    • Circuit Design
    • Project Videos
    • Components
  • Articles
    • Tech Articles
    • Insight
    • Invention Stories
    • How to
    • What Is
  • News
    • Electronic Product News
    • Business News
    • Company/Start-up News
    • DIY Reviews
    • Guest Post
  • Forums
    • EDABoard.com
    • Electro-Tech-Online
    • EG Forum Archive
  • DigiKey Store
    • Cables, Wires
    • Connectors, Interconnect
    • Discrete
    • Electromechanical
    • Embedded Computers
    • Enclosures, Hardware, Office
    • Integrated Circuits (ICs)
    • Isolators
    • LED/Optoelectronics
    • Passive
    • Power, Circuit Protection
    • Programmers
    • RF, Wireless
    • Semiconductors
    • Sensors, Transducers
    • Test Products
    • Tools
  • Learn
    • eBooks/Tech Tips
    • Design Guides
    • Learning Center
    • Tech Toolboxes
    • Webinars & Digital Events
  • Resources
    • Digital Issues
    • EE Training Days
    • LEAP Awards
    • Podcasts
    • Webinars / Digital Events
    • White Papers
    • Engineering Diversity & Inclusion
    • DesignFast
  • Guest Post Guidelines
  • Advertise
  • Subscribe
