RF based 16 Channel wireless control using 8051 microcontroller

By Ashutosh Bhatt

The simple wireless RF remote using HT12E & HT12D set of encoder/decoder and RF module has limitation of providing only 4 controls to the user. This topic presents a way to create 16 channels of output corresponding to 4 channels of input. This has been achieved by using AT89C51 of 8051 family of microcontrollers on the receiver end. In this application, a maximum of 16 appliances can be switched by four inputs at transmission end.


The provision of providing input to the circuit has been provided by a set of four switches. These switches are connected to the encoder IC HT12E. The binary logics from 0000 to 1111 can be passed through these switches. For example, a 1001 logic can be sent by pressing the 2nd and 3rd switches (since the switches are connected to ground). The encoder converts the parallel logic to serial form which gets transmitted through the antenna of the RF transmitter. For more details, refer wireless RF remote. The RF receiver acquires these signals and sends it to the decoder IC HT12D. HT12D decodes the serial data to generate the parallel signals again.

The output bits from the decoder are supplied to AT89C51. The microcontroller is programmed to read these inputs and provide the corresponding output. From four input options, a total of 16 (24) combinations can be provided for output. The high voltage devices can be switched using these signals through relays.
The four inputs (from decoder) to the microcontroller are provided through pins 0-3 of port P0. Port P1 and P3 are the output ports to connect the appliances or relays to be switched.


Project Source Code

###

#include<reg51.h>
sbit in1=P2^0;	 //input pin1
sbit in2=P2^1;	 //input pin1
sbit in3=P2^2;	 //input pin1
sbit in4=P2^3;	 //input pin1

sbit out1=P1^0;	 //output pins for 16 controls/appliances
sbit out2=P1^1;
sbit out3=P1^2;
sbit out4=P1^3;
sbit out5=P1^4;
sbit out6=P1^5;
sbit out7=P1^6;
sbit out8=P1^7;

sbit out9=P3^0;
sbit out10=P3^1;
sbit out11=P3^2;
sbit out12=P3^3;
sbit out13=P3^4;
sbit out14=P3^5;
sbit out15=P3^6;
sbit out16=P3^7;

void main()
{	in1=in2=in3=in4=1;	  //configuring as input pins
    	out1=out2=out3=out4=out5=out6=out7=out8=out9=out10=out11=out12=out13=out14=out15=out16=1;	 //making output pins high

 	while(1)
  	{
   		while(in1==1&&in2==1&&in3==1&&in4==1)	 //signal (1111) is fed to output pin 1
		{
		 	out2=out3=out4=out5=out6=out7=out8=out9=out10=out11=out12=out13=out14=out15=out16=1;
		  	out1=0;
		}

   		while(in1==1&&in2==1&&in3==1&&in4==0)	 //signal (1110) is fed to output pin 2
		{
    	  		out1=out3=out4=out5=out6=out7=out8=out9=out10=out11=out12=out13=out14=out15=out16=1;
		  	out2=0;
		}

   		while(in1==1&&in2==1&&in3==0&&in4==1)	//signal (1101) is fed to output pin 3
		{
		 	out1=out2=out4=out5=out6=out7=out8=out9=out10=out11=out12=out13=out14=out15=out16=1;
		  	out3=0;
		}

   		while(in1==1&&in2==1&&in3==0&&in4==0)   //signal (1100) is fed to output pin 4
		{
		 	out1=out2=out3=out5=out6=out7=out8=out9=out10=out11=out12=out13=out14=out15=out16=1;
		  	out4=0;
		}

   		while(in1==1&&in2==0&&in3==1&&in4==1)	//signal (1011) is fed to output pin 5
		{
		 	out1=out2=out3=out4=out6=out7=out8=out9=out10=out11=out12=out13=out14=out15=out16=1;
		  	out5=0;
		}

   		while(in1==1&&in2==0&&in3==1&&in4==0)   //signal (1010) is fed to output pin 6
		{
		 	out1=out2=out3=out4=out5=out7=out8=out9=out10=out11=out12=out13=out14=out15=out16=1;
		  	out6=0;
		}

   		while(in1==1&&in2==0&&in3==0&&in4==1)  //signal (1001) is fed to output pin 7
		{
		 	out1=out2=out3=out4=out5=out6=out8=out9=out10=out11=out12=out13=out14=out15=out16=1;
		  	out7=0;
		}

   		while(in1==1&&in2==0&&in3==0&&in4==0)  //signal (1000) is fed to output pin 8
		{
			out1=out2=out3=out4=out5=out6=out7=out9=out10=out11=out12=out13=out14=out15=out16=1;
		  	out8=0;
		}

   		while(in1==0&&in2==1&&in3==1&&in4==1)  //signal (0111) is fed to output pin 9
		{
			out1=out2=out3=out4=out5=out6=out7=out8=out10=out11=out12=out13=out14=out15=out16=1;
		  	out9=0;
		}

 		while(in1==0&&in2==1&&in3==1&&in4==0) //signal (0110) is fed to output pin 10
		{
		 	out1=out2=out3=out4=out5=out6=out7=out8=out9=out11=out12=out13=out14=out15=out16=1;
		  	out10=0;
		}

		while(in1==0&&in2==1&&in3==0&&in4==1)   //signal (0101) is fed to output pin 11
		{
		 	out1=out2=out3=out4=out5=out6=out7=out8=out9=out10=out12=out13=out14=out15=out16=1;
		  	out11=0;
		}

   		while(in1==0&&in2==1&&in3==0&&in4==0)   //signal (0100) is fed to output pin 12
		{
		 	out1=out2=out3=out4=out5=out6=out7=out8=out9=out10=out11=out13=out14=out15=out16=1;
		  	out12=0;
		}

   		while(in1==0&&in2==0&&in3==1&&in4==1)  //signal (0011) is fed to output pin 13
		{
		 	out1=out2=out3=out4=out5=out6=out7=out8=out9=out10=out11=out12=out14=out15=out16=1;
		  	out13=0;
		}

   		while(in1==0&&in2==0&&in3==1&&in4==0)  //signal (0010) is fed to output pin 14
		{
		 	out1=out2=out3=out4=out5=out6=out7=out8=out9=out10=out11=out12=out13=out15=out16=1;
		  	out14=0;
		}

   		while(in1==0&&in2==0&&in3==0&&in4==1)   //signal (0001) is fed to output pin 15
		{
		 	out1=out2=out3=out4=out5=out6=out7=out8=out9=out10=out11=out12=out13=out14=out16=1;
		  	out15=0;
		}

   		while(in1==0&&in2==0&&in3==0&&in4==0)  //signal (0000) is fed to output pin 16
		{
		 	out1=out2=out3=out4=out5=out6=out7=out8=out9=out10=out11=out12=out13=out14=out15=1;
		  	out16=0;
		}

 	}
}

###




Circuit Diagrams

Transmitter-Part

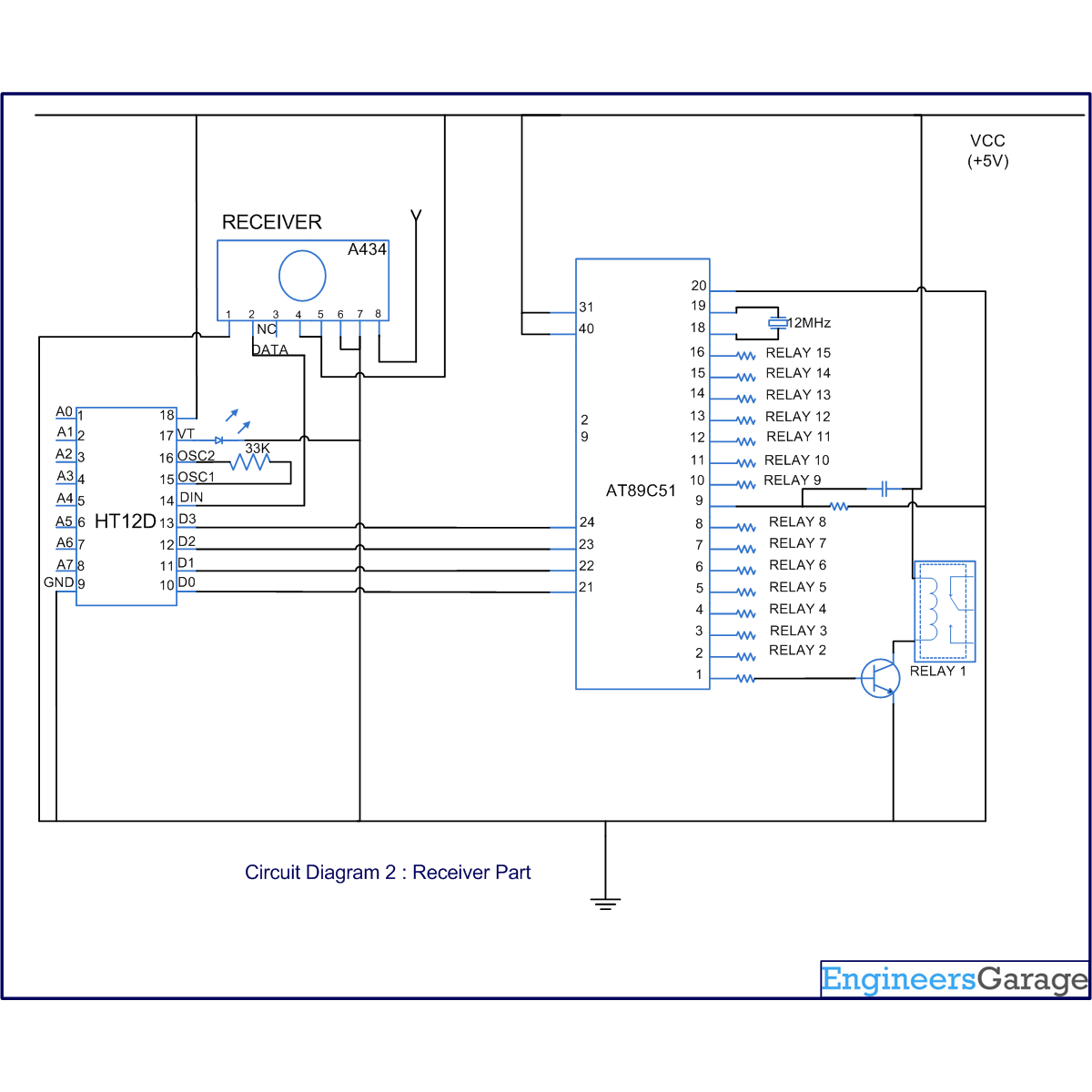

Receiver-Part

Project Components

  • AT89C51 Microcontroller
  • HT12D Decoder IC
  • HT12E Encoder IC
  • Relay Switch


Filed Under: 8051 Microcontroller
