Robot Remote Control

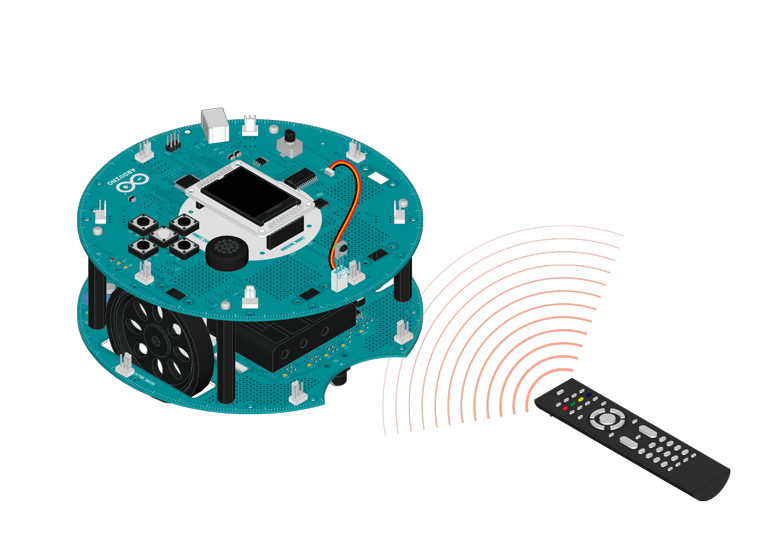

This article will discuss the role of IR remote receiver and robot and how their connection discovers a new phenomenon. So, when an IR remote control is connected to the robot, it can be controlled like a remote control of your TV set. The following article is on experimental basis and if you want to it to run, install the IR remote library by ken sheriff on your IDE and read the code for better information.

This experiment is in wholesome idea includes the usage of a compatible remote controller, in which some buttons need to be set to perform different action and then you can make your robot perform by just sitting on your couch.

Equipment required

The hardware required here are few. Apart from Sony compatible remote control and an Arduino robot which is already mentioned above, you will need an infrared sensor and a cable to connect the server.

Working of the project

You can begin your project by connecting the IR sensor to TKD2 on the top board. Establish the connection by using the cable provided, then fix the sensor on the board. Once sensor is fixed, upload the example, unplug USB and turn on power. The screen will start now. After starting the screen, use the remote control to send it commands. Then press the buttons you’ve coded to move the robot. You will see received signals and recognized commands on the LCD. Further, if you want to customize your commands, you have to press the buttons on remote control and write down the values showing up on LCD. Change the values to the one you saw on the screen

Here, an overview of project is given that how it is performed but you must understand that the role of codes here are of utmost importance. In fact, apart from few hardware equipment, all you need is the understanding and applicability of the codes.
