This is a simple tutorial on how to interface seven segment display with 8051(89c51,89c52) microcontroller. The post/tutorial explains the connections and interfacing of 7 segment display with 89c51 microcontroller. 7 segment display is interfacedwith Port-1 of 89c51 microcontroller. Numeric characters from 1 to 9 and alphabets from A to F will be displayed on single seven segment display using 89c51 microcontroller.
Types of 7 segment display
There are basically two types of seven segment displays Anode and Cathode. First i would like you to take a simple tutorial on whats the difference between the two
Above Tutorial will help you in determining which seven segment you are using anode or cathode. You will be familiarize with the pin out and internal structure of the seven segment display. The upper tutorial will also explain you what are the pros and cons of using anode and cathode seven segment displays.

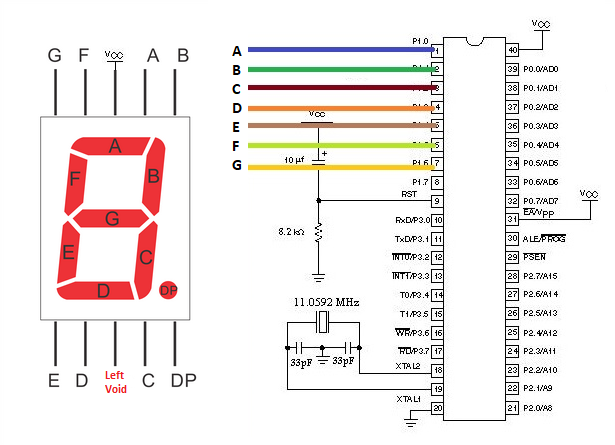

7 segment display with 8051 microcontroller – circuit diagram
The circuit of the project is straight forward. No messy circuit connections. I am using common anode seven segment display in the project. Common anode 7 segment display led’s are switched ON when we make any led pin ground. 11.0592 Mhz crystal is used to provide clock to 89c51 microcontroller. Circuit diagram of 7 segment interfacing 8051 microcontroller is given below.
7 segment display with 8051 microcontroller
The above 7 segment display interfaced with 89c51 micrococntroller translates to some thing given below. I just removed the wires in the above diagram. Wires makes circuit messy. Both the circuits are same. No difference in connections or working.
seven segment display interfacing 8051(89c51) microcontroller-circuit diagram
8051 microcontroller port-1 interfaced with 7 segment – Individual pin connections
7 segment pins connection’s with 89c51 microcontroller port-1 individual pins is shown in the below picture. 7 segment display only has 7 sevens pins and 8051 microcontroller port-1 is 8-bit wide. So one pin of 89c51 port-1 is left void.
8051(89c51,89c52) Port 1 pin assignment to seven segment display
How numbers and characters are displayed on 7 segment display?
89c51 microcontroller port pins are assigned to seven segment in the above order(picture). Instructions like P1=0xCF are hexadecimal instructions and they are making port 1 pins high or low.
Like P1=0xCF is equivalent to 11001111(C=1100 and F=1111) in binary. This instruction makes f & e(P1.5 and P1.4) pins of seven segment ground and the corresponding led’s to these pins becomes high. which prints 1 on the seven segment display.
Below are the full instructions used to display numbers and alphabets on the 7 segment display. These instructions are hard coded in the code.
- Making 1- f e is grounded P1=0xCF; 11001111
- Making 2- a b g e d is grounded P1=0xA4; 10100100
- Making 3- a b c d g is grounded P1=0xB0; 10110000
- Making 4- b c f g is grounded P1=0x99; 10011001
- Making 5- a c d f g is grounded P1=0x92; 10010010
- Making 6- a c d e f g is grounded P1=0x82; 10000010
- Making 7- a b c is grounded P1=0xF8; 11111000
- Making 8- a b c d e f g is grounded P1=0x00; 00000000
- Making 9- a b c f g is grounded P1=0x98; 10011000
- Making A- a b c e f g is grounded P1=0x88; 10001000
- Making B- a b c d e f g is grounded P1=0x00; 00000000
- Making C- a d e f is grounded P1=0xC6; 11000110
- Making D- a b c d e f is grounded P1=0xC0; 11000000
- Making E- a d e f g is grounded P1=0x86; 10000110
- Making F- a e f g is grounded P1=0x8E; 10001110
7 segment with 89c51 microcontroller – Code
Coming to the code first i included the necessary header file reg51.h. If you are using keil for writing and compiling code you have to include this library other wise their will be an error during compilation of the code. If you are using 89c52 or 89s52 include library reg52.h instead of reg51.h. Then a delay function is used to give some delay to a particular character/alphabet or number to remain printed on the seven segment display. Delay is for viewing the character/alphabet or number for some time and then moving to next. If their is no delay the numbers will display so fast that we can not see them. In main function my first instruction is P1=0x00. This instruction is initializing Port-1 as output port. Rest of the instructions are in hexa-decimal form and there functions are discussed above.
Note: If you are using Common cathode seven segment display the upper commands will be same just make a little change turn 0(zeros) to 1(ones) and 1(ones) to 0(zeros) because common cathode lit its leds when any pin is high.
The while 1 loop is continuously running our seven segment display. Means continuously printing characters and numbers on it.
