Verilog Tutorial 12: How to design 8-bit parity generator and checker circuits in Verilog

Note: it’s recommended to follow this VHDL tutorial series in order, starting with the first tutorial. Follow the full series here.

In the previous Verilog Tutorial – 11, we learned how to design half and full-subtractor circuits in Verilog.

In this tutorial, we’ll:

1. Write a Verilog program to build an 8-bit parity generator and checker circuits
2. Verify the program’s output waveform (digital circuit) with truth tables for the parity generator and parity checker circuits

The half-subtractor circuit

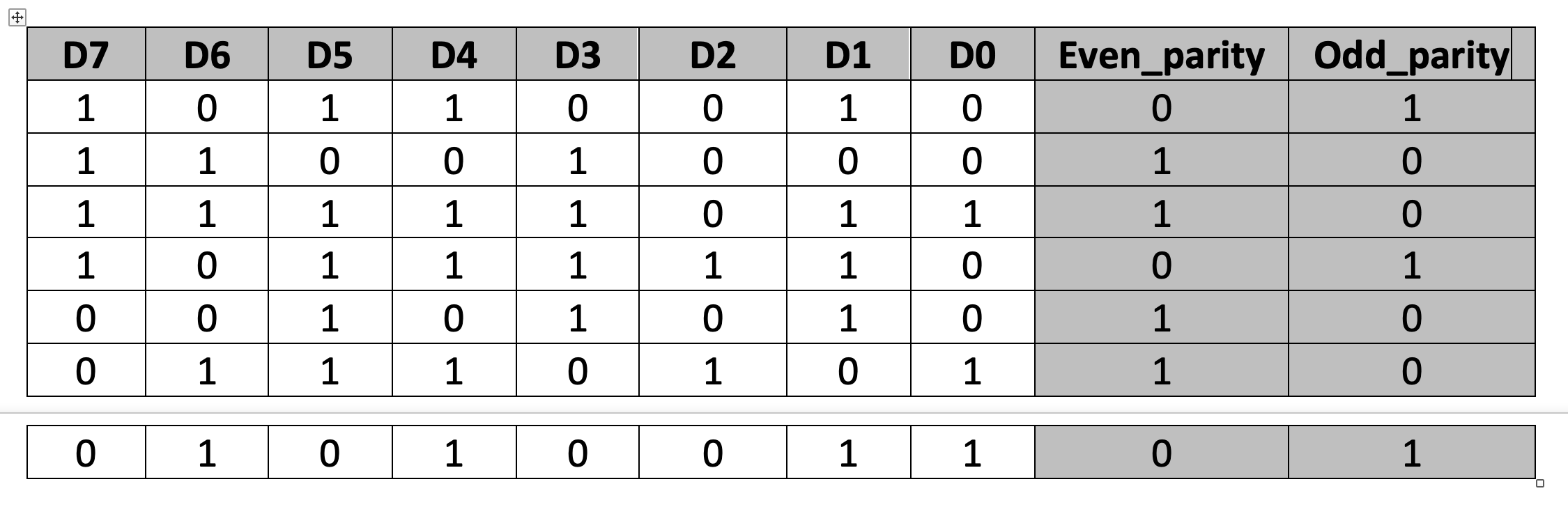

Truth table

Next, let’s write the Verilog program, compile and simulate it, and get the output in a waveform. We’ll also verify the output waveforms with the given truth table.

First, it’s important to review the step-by-step procedure provided in VHDL Tutorial – 3. In that tutorial, we learn how to design a project, edit and compile a program, create a waveform file, simulate the program, and generate the final output waveforms.

Verilog program

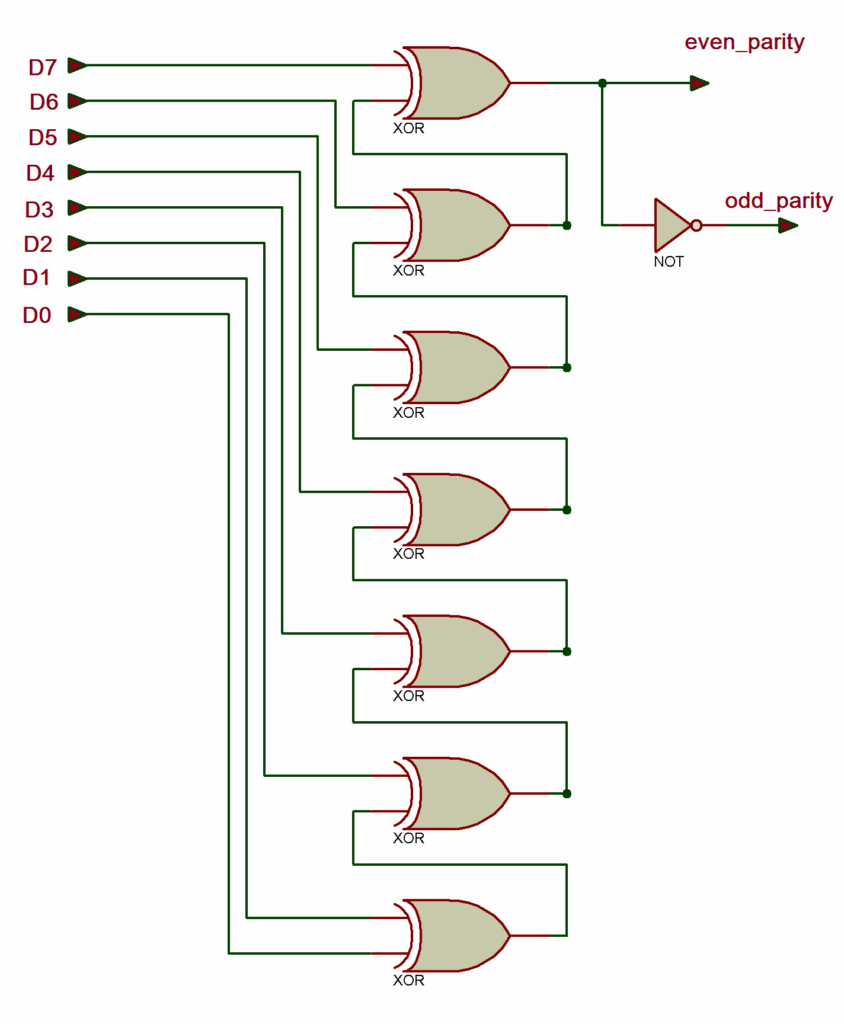

Gate-level modeling:

module parity_gen(even_p,odd_p,d);
 output even_p,odd_p;
 input [7:0] d;
 wire t1,t2,t3,t4,t5,t6;
  xor(t1,d[0],d[1]);
  xor(t2,d[2],t1);
  xor(t3,d[3],t2);
  xor(t4,d[4],t3);
  xor(t5,d[5],t4);
  xor(t6,d[6],t5);
  xor(even_p,d[7],t6);
  not(odd_p,even_p);
endmodule

Dataflow modeling:

module parity_gen(even_p,odd_p,d);
 output even_p,odd_p;
 input [7:0] d;
 wire t1,t2,t3,t4,t5,t6;
 assign t1 = d[0] ^ d[1];
 assign t2 = d[2] ^ t1;
 assign t3 = d[3] ^ t2;
 assign t4 = d[4] ^ t3;
 assign t5 = d[5] ^ t4;
 assign t6 = d[6] ^ t5;
 assign even_p = d[7] ^ t6;
 assign odd_p = ~even_p;
endmodule

Now, compile the above program, creating a waveform file with all of the necessary inputs and outputs that are listed, and simulate the project.

Here are the results…

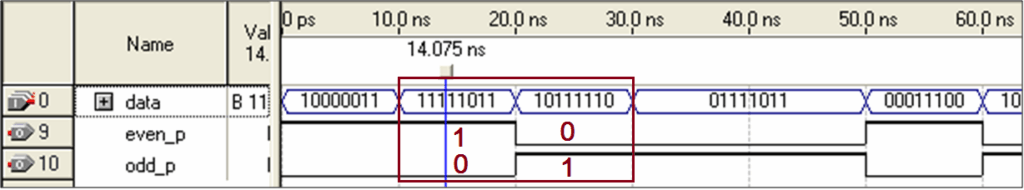

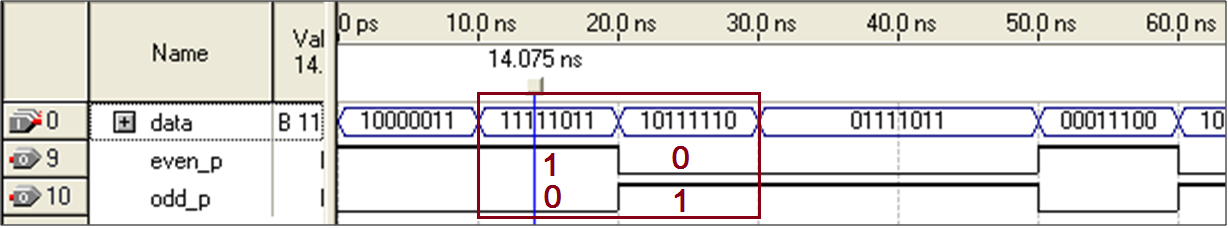

Waveform simulation

Be sure to verify the ‘even_p’ and ‘odd_p’ output waveforms with the D0-D7 input data. For example, as shown above, for ‘1111 1011’ the even_p output is ‘1’ and the odd _p output is ‘0.’ Whereas, for ‘1011 1110,’ the even_p output is ‘0’ and the odd_p output is ‘1.’

Next, let’s build the 8-bit parity checker circuit.

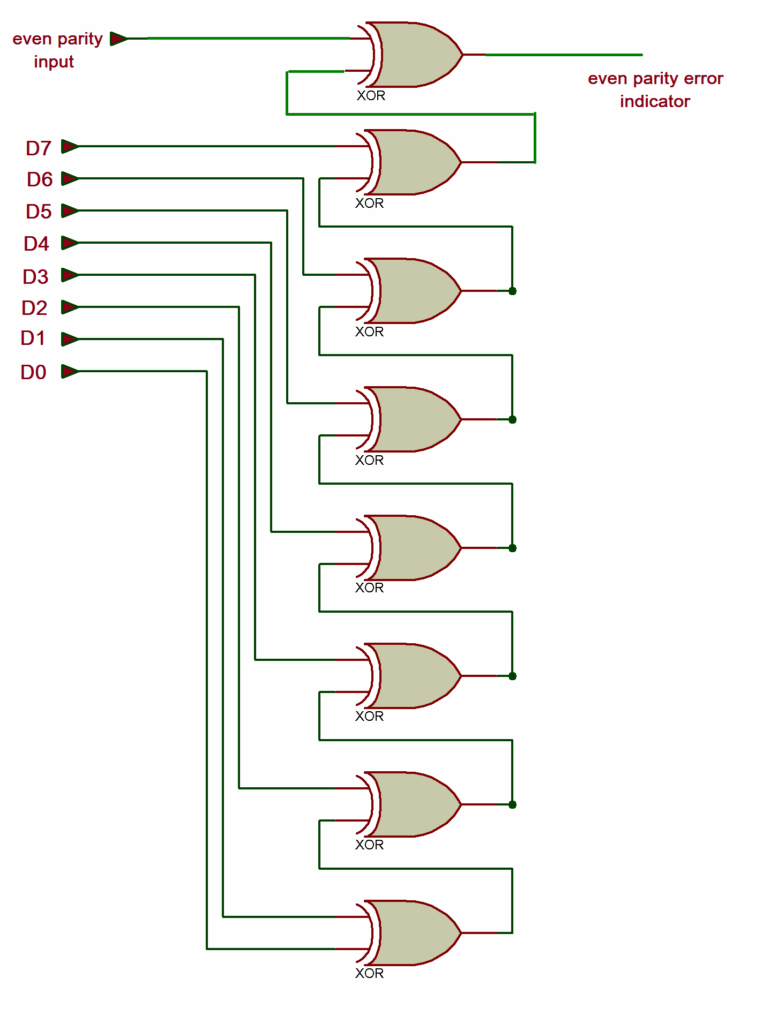

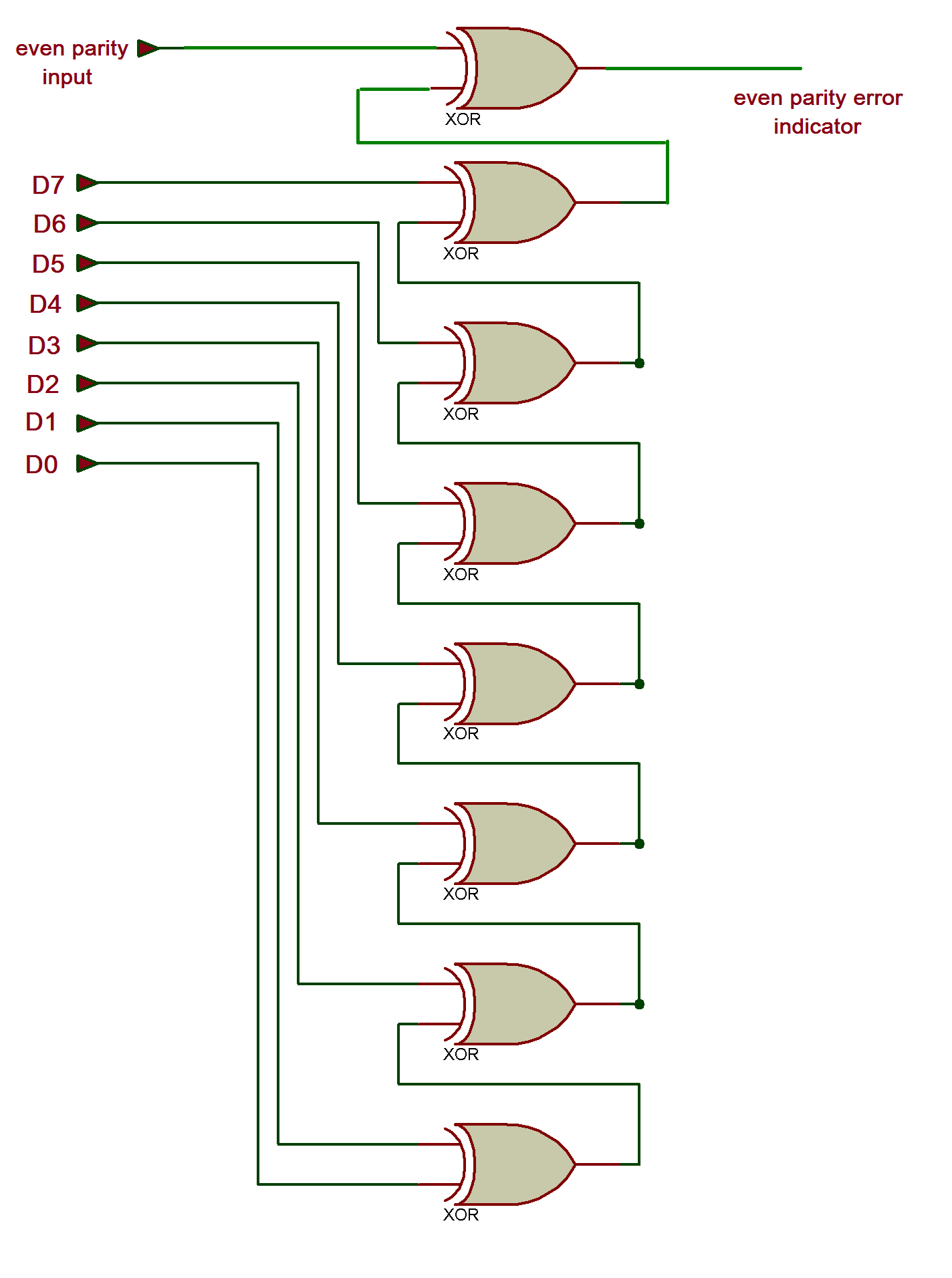

The 8-bit parity checker circuit

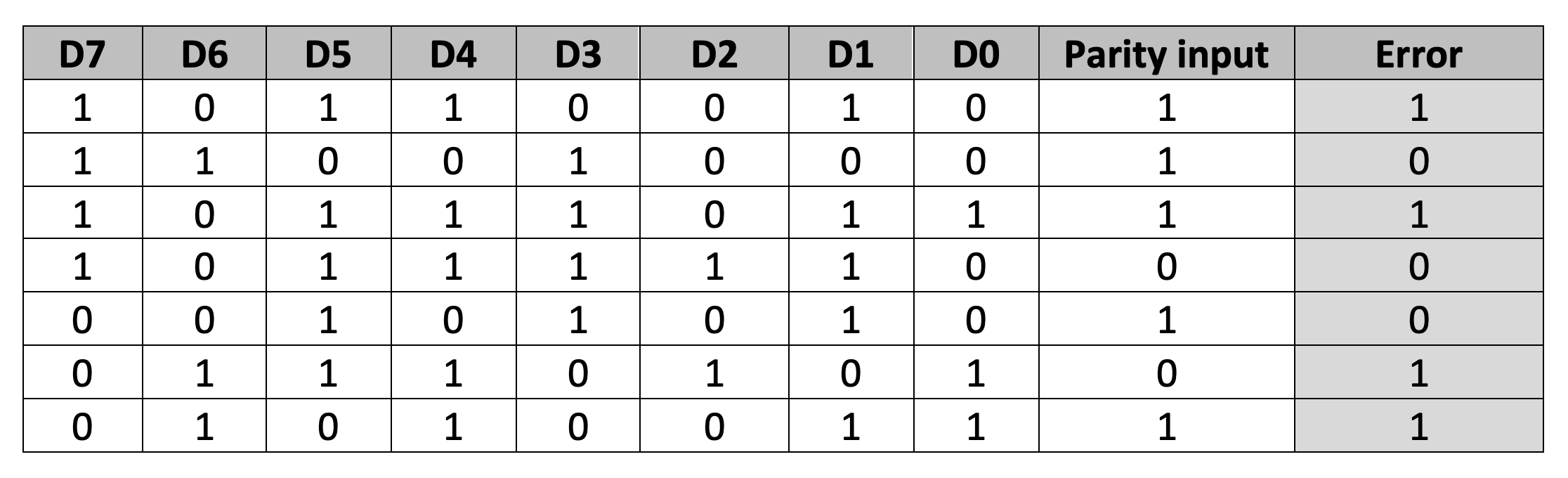

Truth table

Verilog program

Gate-level modeling:

module parity_chk(p,e,d);
 output e;
 input [7:0] d,p;
 wire t1,t2,t3,t4,t5,t6,t7;
  xor(t1,d[0],d[1]);
  xor(t2,d[2],t1);
  xor(t3,d[3],t2);
  xor(t4,d[4],t3);
  xor(t5,d[5],t4);
  xor(t6,d[6],t5);
  xor(t7,d[7],t6);
  xor(e,p,t7);
endmodule

Dataflow modeling:

module parity_gen(p,e,d);
 output e;
 input [7:0] d,p;
 wire t1,t2,t3,t4,t5,t6,t7;
 assign t1 = d[0] ^ d[1];
 assign t2 = d[2] ^ t1;
 assign t3 = d[3] ^ t2;
 assign t4 = d[4] ^ t3;
 assign t5 = d[5] ^ t4;
 assign t6 = d[6] ^ t5;
 assign t7 = d[7] ^ t6;
 assign e = p ^ t7;
endmodule

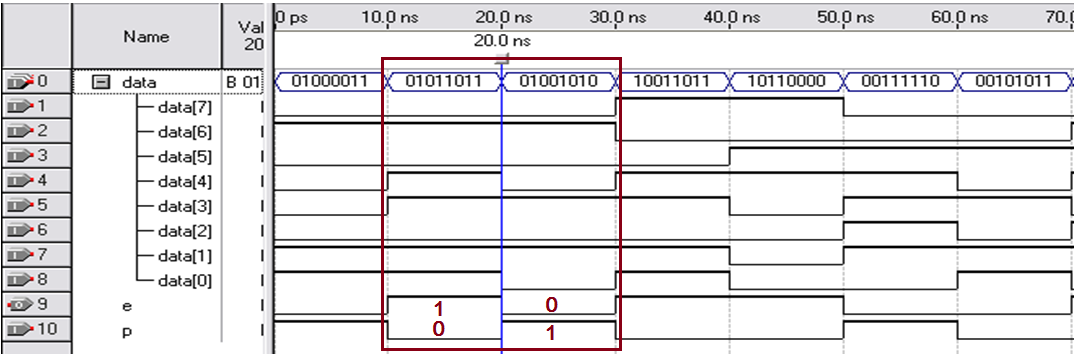

Simulation waveform

Now, verify the ‘e’ output waveform against the parity input ‘p’ and the D0-D7 data. As shown aboive, for ‘0101 1011’ and parity ‘1,’ the error output is ‘1.’ Whereas, for ‘0100 1010′ and parity ‘0,’ the output is ‘0.’
