VHDL Tutorial 1: Introduction to VHDL

What is VHDL?

VHDL is a short form of VHSlC Hardware Description Language where VHSIC stands for Very High Speed Integrated Circuits
It’s a hardware description language – means it describes the behavior of a digital circuit, and also it can be used to derive or implement a digital circuit/system hardware
It can be used for digital circuit synthesis as well as simulation.
It is used to build digital system/circuit using Programmable Logic Device like CPLD ( Complex Programmable Logic Device) or FPGA (Field Programmable Gate Array)
VHDL program (code) is used to implement digital circuit inside CPLD / FPGA, or it can be used to fabricate ASIC (Application Specific Integrated Circuit)
It is very useful in developing high end, sophisticated microprocessor or micro-controller like ASIP (Application Specific Instruction Processor) or PSoC (Programmable System on Chip)

Now before going into more details about VHDL, let us first see how and why there was a need for VHDL.

Why VHDL?

In 1980’s US DoD (Department of Defence) initiated the VHSIC program
Different hardware designing companies started developing their ICs with their own HDL. All companies had their own and different HDL
So the problem was all these different companies cannot exchange their code and designs with another.
Also, all companies provide their chip design to DoD with different HDL
So there was a requirement to standardized hardware description language for digital circuit/system design, documentation, and verification.

Advantages of VHDL

Its vendor-independent
It is portable
It is reusable
It supports hierarchical design – whole big and complex system can be modelled as an interconnection of small components, and again components can be further modelled as an interconnection of subcomponents
All statements of VHDL program are executed concurrently (unless and until the statements are placed inside procedure, function or process)
It is human-readable as well as machine-readable
It is IEEE and ANSI standard
Supports different design methodologies like top-down, bottom-up, mix, etc
Can be used to design combinational, sequential or mixed digital circuits using three different methods 1) dataflow 2) behavioural 3) structural

Brief history of VHDL origin

In 1985 the first version of VHDL 7.2 was developed by IBM, TEXAS INST. and Intermatrix under a contract of DoD
In 1987 it was standardized by IEEE with IEEE 1076 standard. After then new standard IEEE 1164 was given to VHDL that is now a day’s used everywhere
ANSI also recognizes VHDL, and standard VHDL reference manual is made available by IEEE that has an official description of this VHDL

Now after getting enough information about VHDL, let us move ahead with designing digital circuits using VHDL.

Here once again, before moving further, I advice all of you to go through two very good books on VHDL.

Circuits design using VHDL by V A Pedroni
A VHDL Primer by J Bhaskar

These books will give you complete information about VHDL and serves as a companion in your journey to learn VHDL. The information given above was also taken from these two books. I also advise you to continuously refer these books as you move further with this VHDL tutorial series.

So I think, now you all are very excited to learn VHDL. Let us first see how to design a digital circuit using VHDL means, “What is the flow of VHDL design?”

VHDL Design Flow

VHDL design flow starts with writing the VHDL program. Various manufacturing companies like XILINX, Altera, etc. provide their own software development tools like XILINX ISE, Altera Quartus, etc. to edit, compile, and simulate VHDL code. In this VHDL code, the circuit is described in RTL (Resister Transfer Level)
This VHDL code is compiled, and it generates Netlist at Gate level. The compiler converts high-level VHDL code in RTL to Gate Level
This Netlist is further optimized to get optimized Netlist again at Gate Level. Optimization is done for better speed and less space. The simulation of design is done at this stage
Finally, a physical device is implemented on CPLD / FPGA, or final MASK is prepared for ASIC from this optimize Netlist by place and route software (fitter). once again the final device can be simulated and verified

This is the digital circuit design flow using VHDL. Now because VHDL is also one kind of programming language, it also has its program structure (similar to other programming languages like C program structure). So as a next step, let us learn what the VHDL program structure is?

VHDL Program Structure

All the VHDL programs consist of at least two components: Entity and Architecture
It may have additional components like configuration, package declaration, body, etc. as per requirements

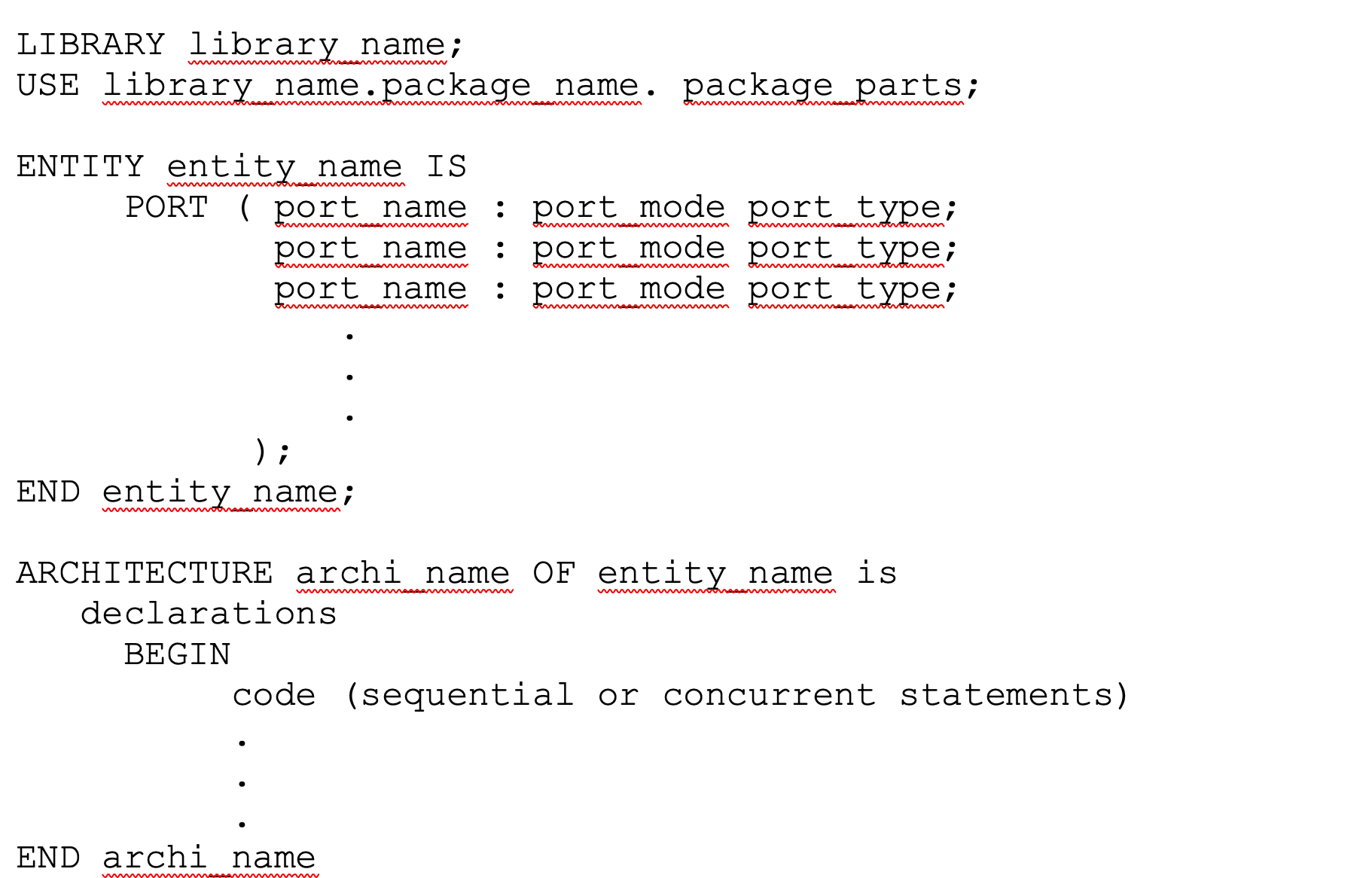

The structure of the VHDL program is like:

Library declaration:

The library contains all the piece of code that is used frequently. It will allow us to reuse them again and again. Also, this can be shared with other designs
It starts with keyword LIBRARY followed by library name
There are three libraries usually used in all VHDL codes
1. IEEE – specifies multilevel logic system
2. std – resource library for VHDL design environment
3. work – used for saving our project work and program file (.vhd)
However, in program code, we need to declare only the IEEE library because the other two libraries are default libraries
Now to add library packages and its part USE keyword is used with library name, library packages, and package parts. For example in the IEEE library, the package is std_logic_1164 and to add all its part we can write

LIBRARY ieee
USE ieee.std_logic_1164.all

So all VHDL programs start with above two statements for library declaration

Entity declaration:

Entity defines input-output connections of the digital circuit with which it can interact with other components/circuits
It declares the number of inputs given to the circuit and the number of outputs taken out form the circuit.
Also, it declares any intermediate signals that are used within the circuit itself.
Entity declaration starts with the keyword ENTITY. The user has to give desire name to entity often related to a circuit that is being designed like ‘mux,’ ‘decoder,’ ‘adder,’ ‘counter’ etc. (the rule of thumb for any VHDL program is the program file name must be same as entity name)
Inside entity, input-output pins of a circuit are declared using keyword PORT
PORT (means interfacing pins) are declared with port_name, port_mode, and port_type
1. port_name – it’s a user-defined name of the input-output pin
2. port_mode – there are four types of port mode IN, OUT, INOUT and BUFFER. IN indicates an input pin, that can be read-only. OUT indicates an output pin and its write-only. Both these pins are unidirectional. INOUT pin is bidirectional that can be read as well as write. BUFFER is used for the intermediate output
3. port_type – it can be BIT, BIT_VECTOR, STD_LOGIC, etc
After declaring all interfaces, the entity declaration ends with keyword END followed by entity name

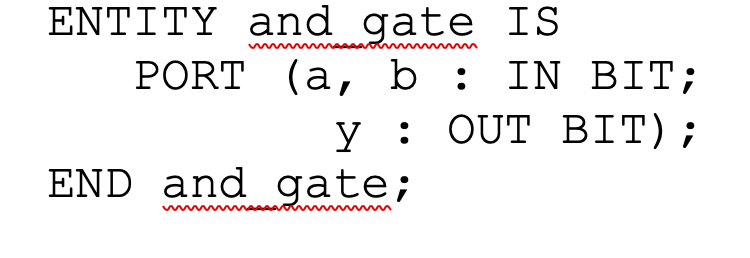

Let us see an entity example for two-input AND gate.

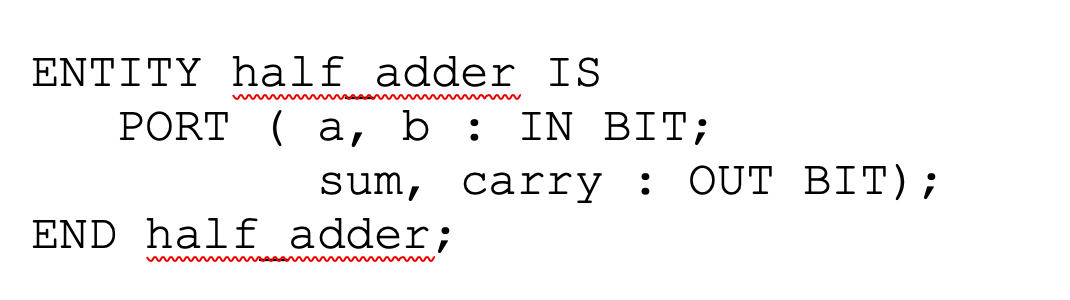

Similarly, we can write an entity for half adder as

Architecture:

Architecture declares the functionalities of the digital circuit
It gives internal details of an entity that means how input-output are interconnected
It describes behaviour of the circuit means how the circuit generates required output from given inputs
The architecture declaration starts with keyword ARCHITECTURE followed by architecture_name and entity_name
The BEGIN keyword indicates the starting of the architecture body. The body includes sequential or concurrent statements that describe circuit functionality
The architecture body ends with keyword END followed by architecture_name

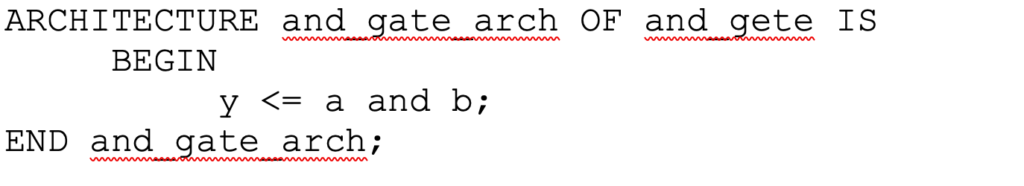

Here is the architecture of 2 input AND gate (the entity is as given above).

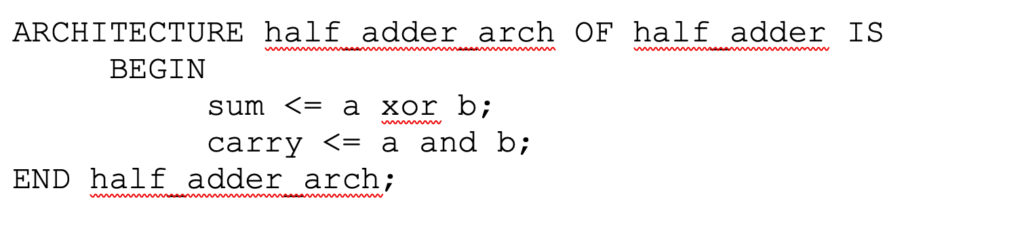

Similarly, let us write architecture for half adder.

There are three different modelling styles for architecture body
1. Data flow style – in this modelling style the circuit is described using concurrent statements
2. Behavioral style – in this modelling style the circuit is described using sequential statements
3. Structural style – in this modelling style the circuit is described using different interconnected components
There can be one more modelling style also that is mix modelling style – a combination of any two or all three styles given above

This completes the fundamentals of VHDL, its design flow, and program structure. In the next tutorial, we shall see different VHDL programs for digital circuits and different modelling styles for VHDL programs.
