Maxim’s new smart actuator reduces power by more than 50 percent

By Michelle Froese November 17, 2020

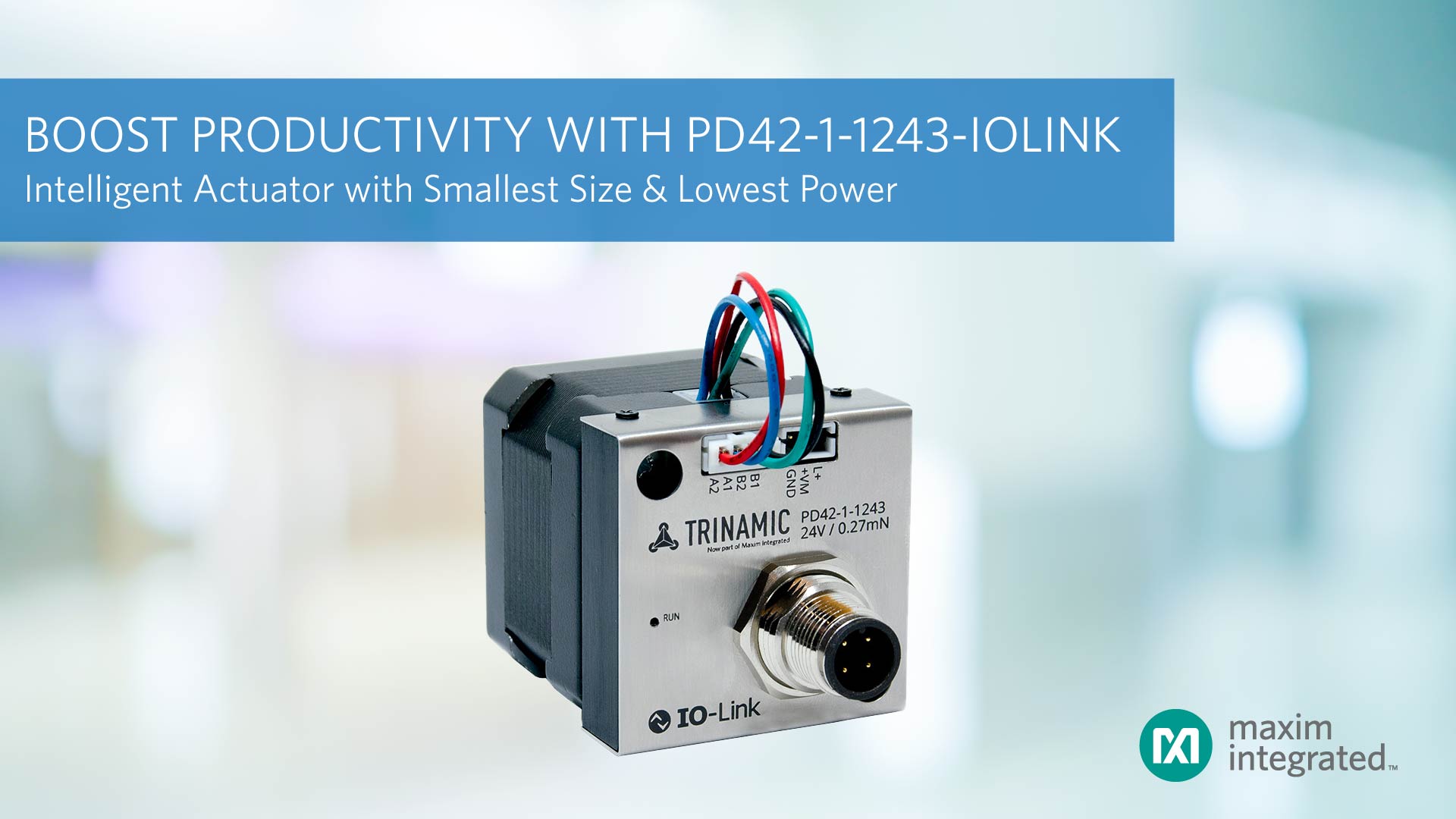

Maxim Integrated Products‘ new Trinamic-branded PD42-1-1243-IOLINK intelligent actuator enables modern smart factories to quickly and remotely adjust an actuator’s electrical characteristics to minimize factory downtime and maximize throughput. It combines a NEMA-17 stepper motor with controller and driver electronics.

With Trinamic now part of Maxim Integrated, the PD42-1-1243-IOLINK uses the flexibility of Maxim Integrated’s MAX22513 IO-Link transceiver to allow seamless configuring of all modes of Trinamic’s TMC2130-LA motor driver.

As the industry’s smallest, lowest-power NEMA-17 PANdrive solution, the intelligent actuator monitors 50 percent more configuration and performance parameters to reduce commissioning times as well as improve the quality of predictive maintenance data.

The new chipset solution of TMC2130-LA motor driver and MAX22513 IO-Link transceiver builds upon the benefits of IO-Link’s two-way universal interface.

The PD42-1-1243-IOLINK intelligent actuator incorporates motion-control technology into a plug-and-play solution that is 2.6x smaller and more than 50 percent lower power compared to the competitive solution. It brings intelligence to the factory floor by providing 50 percent more parameters compared to the competitive solution to help improve predicting factory shutdowns and maximize factory throughput.

The PD42-1-1243-IOLINK intelligent actuator includes the following chipset:

  • MAX22513: The MAX22513 IO-Link transceiver is 3x smaller than the closest competitive solution, making it the industry’s smallest ±1kV/500Ω surge-protected, dual-driver IO-Link transceiver (4.2mm x 2.1mm WLP package). It features high integration with a DC-DC regulator, protection diodes, auxiliary digital input, I2C or SPI control, integrated oscillator, and selectable 3.3V or 5V LDO, which is easy to configure and reduces SKUs. It enables 4x lower power dissipation due to low 2.0Ω (typ) C/Q driver on-resistance compared to the competitive solution.
  • TMC2130-LA: The TMC2130-LA motor driver offers stall detection with no sensors necessary, unlike the competitive solution, to flag unwanted mechanical behavior. It provides extremely smooth and precise motion with up to 256x micro-stepping compared to the 16x industry standard, resulting in accurate positioning and minimized resonance. Key integrated functions include a complete driver stage with low RDSon N-channel power MOSFETs configured as full H-bridges to drive the motor windings up to 1.2A RMS at 5-46V, an SPI interface for configuration and diagnostics, as well as a step-direction interface.

Advantages

  • Increased productivity: Adjusts more device parameters on-the-fly by providing access to load values and noise reduction parameters using StealthChop™ technology to dynamically optimize actuator throughput performance
  • Lower power: CoolStep power savings feature of TMC2130-LA, combined with low RDSon N-Channel power MOSFETS of MAX22513 provides best-in-class power savings compared to other NEMA-17 IO-Link drives on the market
  • Small size: PD42-1-1243-IOLINK provides the smallest IO-Link intelligent actuator by eliminating external limit switches to detect hard stop conditions resulting in a solution size of 82cm3.
