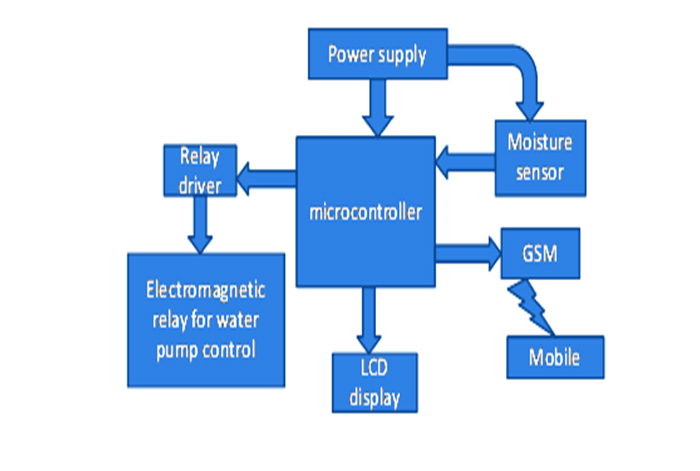

Data sensing acquisition and notification framework using moisture sensor

 ###



$regfile = "M16def.dat"
 $crystal = 8000000
 $framesize = 24
 $hwstack = 32
 $swstack = 8
 $baud = 19200                                               '****BAUD RATE IS AUTO DETECTED BY GSM SO YOU CAN TAKE ANY ONE
 Dim A As String * 5 , Rcvd As String * 5
 Dim I As Integer
 'Config Portc = Output

 Config Lcdpin = Pin , E = Portc.4 , Rs = Portc.5 , Db4 = Portc.3 , Db5 = Portc.2 , Db6 = Portc.1 , Db7 = Portc.0
 Config Lcd = 16 * 2
   Config Adc = Single , Prescaler = Auto , Reference = Avcc

 Start Adc

 Dim S As Integer

 Dim W As Word
  Dim H As Integer
  Config Portd.6 = Output



 Config Serialin = Buffered , Size = 254
 Config Serialout = Buffered , Size = 254
 Enable Interrupts
 Config Portd.6 = Output
 'Set Portc.6 '
 'Waitms 500'
 'Reset Portc.6 'POWER KEY (LOW)PULSE
 'Wait 2'
 'Set Portc.6'
 ' Cls

  Lcd "gsm"
  Wait 1
  Cls

 Wait 25                                                     'WAIT FOR FINE NETWORK

 Do
 Cls


 For S = 0 To 100 Step 1

 W = Getadc()

 W = W / 8
  Locate 1 , 1

 Lcd "HUMIDITY:"
 Locate 1 , 10
 Lcd W

 Waitms 100
 Next

 Cls

 If W > 70 Then
 Reset Portd.6
 H = 1
 Else
  Set Portd.6
 H = 2
 End If


 Cls
 Locate 1 , 1
 Lcd "Power UP"
 Wait 2
 Cls

 Do
 Cls
 Locate 1 , 1
 Lcd "Waiting"
 Print "AT"                                                  'SENDING "AT" FOR CHEKING THE GSM MODEM IS WORKING
 A = Inkey()
 Loop Until A = "O"                                          'RESPONSE OF "AT" IS "OK" SO WAITING FOR  FIRST LETER "O"

 Rcvd = A

 Do
 A = Waitkey()
 Loop Until A = "K"                                          'RESPONSE OF "AT" IS "OK" SO WAITING FOR  SECOND LETER "K"

 Rcvd = Rcvd + A                                             'COMBINE "O & K" FOR FINAL RESPONSE"OK"




 Cls
 Lcd Rcvd

 Wait 2

 Rcvd = ""                                                   'MAKING RCVD EMPTY FOR OTHER RESONSE

 Cls
 Print "AT+CMGF=1"                                           'TO ENTER IN TEXT MODE OTHER WISE MODEM WILL BE IN PDU(PACKET DATA UNIT) "AT+CMGF=0"
 Locate 1 , 1
 Lcd "AT+CMGF=1"                                             'FOR DISPLAY

 Do
 A = Inkey()
 Loop Until A = "O"                                          'RESPONSE OF "AT+CMGF=1" IS "OK" SO WAITING FOR  FIRST LETER "0"

 Rcvd = A
 Do
 A = Inkey()
 Loop Until A = "K"                                          'RESPONSE OF "AT+CMFG=1" IS "OK" SO WAITING FOR  SECOND LETER "K"
 Rcvd = Rcvd + A

 Lowerline

  Lcd Rcvd
  Wait 4
 Cls

 Print "AT+CMGD=1"                                           'TO RECIVE THE NEW MESSAGE IN 1ST INDEX WE ARE DELETING THE FIRST ENTRY                                       ' ; I
 Lcd "AT+CMGD=1"
 Rcvd = ""
 Do
 A = Inkey()
 Loop Until A = "O"

 Rcvd = A
 Do
 A = Inkey()
 Loop Until A = "K"
 Rcvd = Rcvd + A                                             'RESEPONSE IS "OK"

 Lowerline


  Lcd Rcvd


  Wait 4
 Rcvd = ""
 Cls
 Locate 1 , 1

 Lcd "AT+CMGW=" + Chr(34) + "9974621247" + Chr(34)
'TO WRITE RECIPIENT'S MOBILE NUMBER TO MEMORY THE AT COMMAND IS "AT+CMGW=1"
Print "AT+CMGW=" + Chr(34) + "9409085769" + Chr(34)
'examlpe - - > At + Cmgw = "9904353830" , Chr(34) Replaces DOUBLE QUOTATION

 Do
 A = Inkey()
 Loop Until A = ">"                                          'RESPONSE OF AT+CMGW="9904353830" IS ">" SO WAITING FOR ">"
 Cls
 Lcd "OK"
 Wait 1

 Wait 2
 Rcvd = ""
 Cls
 Locate 1 , 1

 Lcd "system is WORKING"


 If H = 1 Then

 Print "THANK YOU"

 Elseif H = 2 Then

 Print "PLZ GIVE WATER"

 End If
                               'TO WRITE MESSAGE TO MEMORY
 Print Chr(26)                                               'IT IS NECCESSARY TO GIVE CTRL+Z AFTER WRITING MESAGE, CHR(26) = CTRL+Z


 Do
 A = Inkey()
 Loop Until A = "O"                                          'RESPONSE AFTER CTRL+Z IS "OK" SO WAITING FOR "O"

 Rcvd = A
 Do
 A = Inkey()
 Loop Until A = "K"                                          'WAITING FOR "K"
 Rcvd = Rcvd + A

 Cls
 Locate 1 , 1
 Lcd Rcvd
 Wait 2
 Cls                                                         '***** MESSAGE IS STORED AT FIRST INDEX BEACAUSE WE ARE DELETING 1ST ENTRY
                                                             'WE HAVE CHECKED IT THROUGH HYPER TERMINAL, SEE "HYPER TERMINAL OUTPUT.DOC" FILE

 Print "AT+CMSS=1"                                           'TO SEND SMS STORED IN 1ST INDEX WE WRITE "AT+CMSS=1"
 Lcd "AT+CMSS=1"


 Clear Serialin
 Rcvd = ""
                                                 '****** RESPONSE OF "AT+CMSS=1" IS +CMSS: 1
 For I = 1 To 10
 A = Waitkey()

 Clear Serialin

 Rcvd = Rcvd + A                                             'RESPONSE IS COLLECTED IN Rcvd STRING VARIABLE JUST TO SEE


 Next

 Locate 2 , 1

 Lcd Rcvd




 Do
 A = Inkey()
 Loop Until A = "O"                                          'FINALLLLLLLLLLLLLLLLLLLLYYYYYYYYYYY  MESSAGE FORM MICROCONTROLLER TO MOBILE

 Rcvd = A
 Do
 A = Inkey()
 Loop Until A = "K"
 Rcvd = Rcvd + A

 Cls
 Locate 1 , 1
 Lcd Rcvd
 Lowerline
 Lcd "MES SENT"
 Wait 2

 Loop
 End


###
